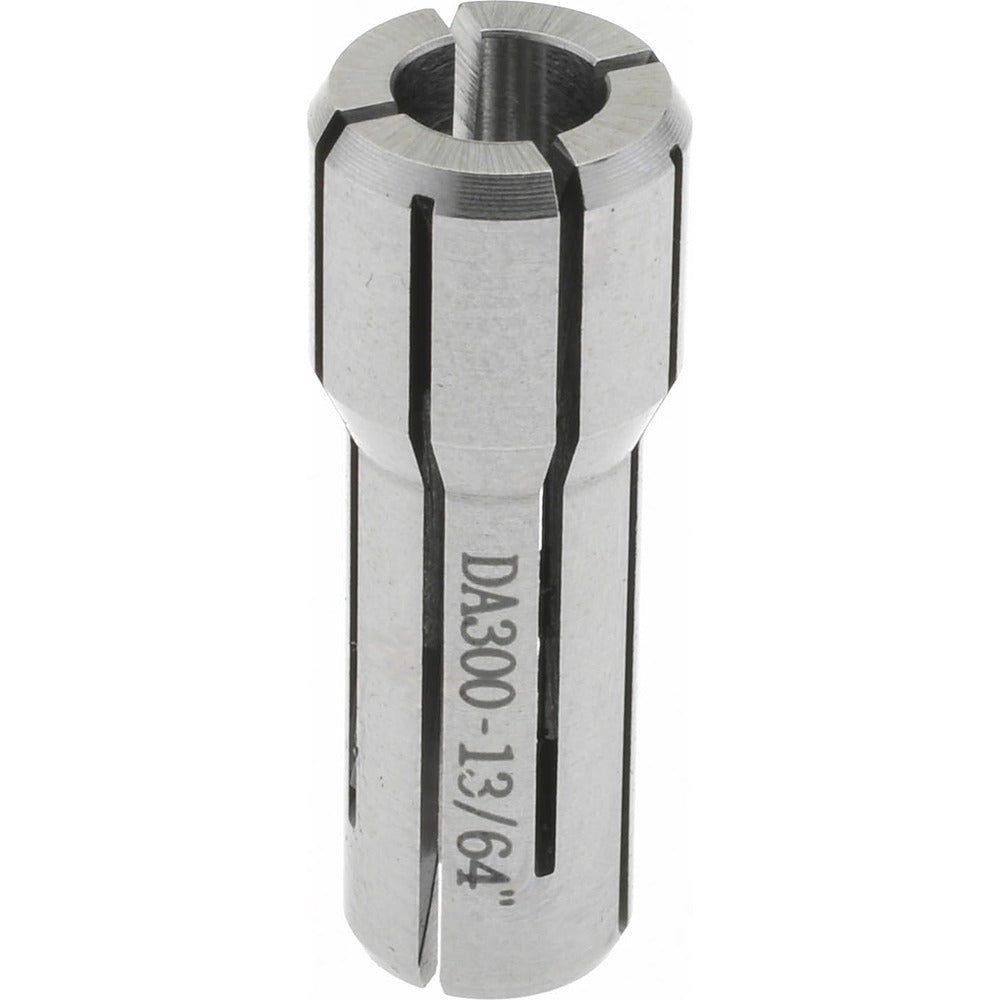

Accupro 586289 DA300 Double Angle Collet 13/64 Inch

Product Description

The ACCUPRO 586289 is a DA300 series double angle collet designed for use in DA-style collet chucks on milling machines, CNC machining centers, and manual mills. It accepts a 13/64 inch (0.20310 inch) tool shank and has an overall length of 1 inch and an overall diameter of 0.3750 inch. The double angle collet design provides firm, concentric clamping on round-shank cutting tools including end mills, drills, and reamers. This collet is installed and serviced by machinists and CNC setup technicians in production and job-shop environments.

The ACCUPRO 586289 is suited for light to medium-duty milling and drilling operations where precise tool holding and repeatable runout are required. It fits DA300-style collet chucks commonly used on vertical milling machines and machining centers. The 13/64 inch bore size makes it appropriate for smaller-diameter end mills and drills in ferrous and non-ferrous machining applications.

Key Features

• DA300 collet series for use with DA300-compatible collet chucks
• 13/64 inch (0.20310 inch) bore accommodates matching round-shank tooling
• Overall length of 1 inch with a 0.3750 inch overall diameter
• Double angle design provides secure, concentric tool clamping
• Sold individually — package quantity of 1

Compatibility

Designed as a direct-fit replacement or spare for DA300-style collet chuck systems requiring a 13/64 inch bore collet.

Installation Notes

Installation is performed by qualified machinists or CNC setup personnel. Ensure the spindle is fully powered down and the machine is locked out before changing collets. Inspect the collet bore and chuck taper for chips, burrs, or wear before seating. Do not exceed the collet chuck manufacturer's recommended torque specifications when tightening the drawbar or nut.
