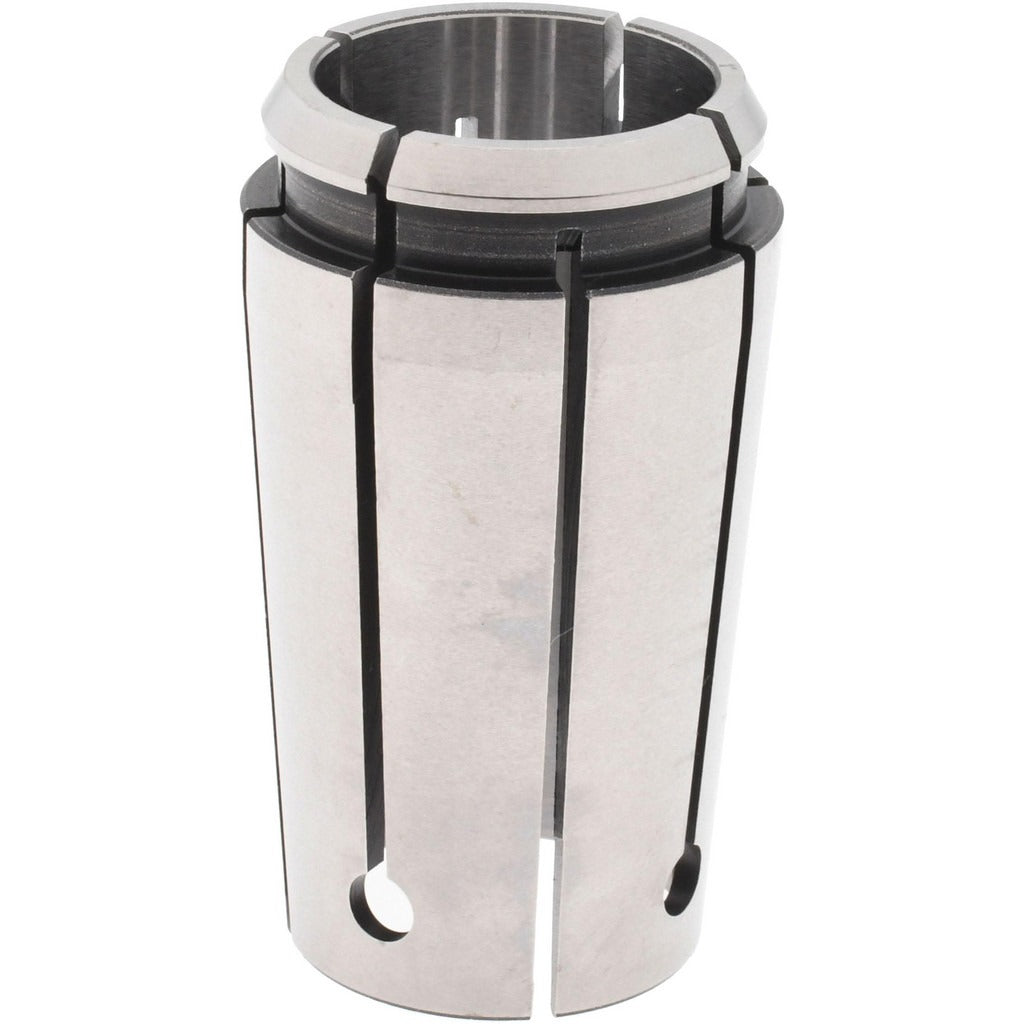

Accupro 584483 Tg/pg 100 Standard Single Angle Collet 1 in

Product Description

The ACCUPRO 584483 is a standard single angle collet in the TG/PG 100 series, designed for use in TG/PG 100 toolholding systems on CNC machining centers, mills, and drilling equipment. This collet accepts a 1-inch diameter workpiece or cutting tool shank and provides a total indicator runout (TIR) of 0.00078 inches, ensuring tight concentricity for precision machining operations. With an overall length of 2.386 inches and a maximum body diameter of 1.278 inches, the 584483 is a direct-fit replacement or new-installation collet for shops requiring reliable, repeatable clamping in high-volume or precision applications. Installed by machinists and toolroom technicians.

This collet is suited for use in TG/PG 100 collet chucks found on vertical and horizontal machining centers in both job-shop and production environments. The TG/PG 100 series is a widely used toolholding standard in CNC and manual milling applications where a balance of gripping force and concentricity accuracy is required. Typical installations include end mill holders, drill chucks, and reamer holders operating in the TG 100 collet range.

Key Features

• TG/PG 100 collet series — compatible with standard TG 100 collet chucks
• 1-inch collet size for secure clamping of 1-inch shank tooling
• TIR of 0.00078 inches (0.0200 mm) for high concentricity and precision runout performance
• Overall length of 2.386 inches suits standard TG 100 chuck depths
• Maximum body diameter of 1.278 inches for proper chuck seating
• Single piece quantity — sold individually

Compatibility

Designed as an OEM-style replacement or standard-fit collet for TG/PG 100 series collet chucks used in CNC and manual milling, drilling, and boring applications.

Installation Notes

Installation is performed by a machinist or toolroom technician. Before inserting or removing the collet, ensure the spindle is fully stopped and the machine is powered down or in an e-stop state. Use the appropriate TG 100 collet nut and spanner wrench for seating — do not overtighten by impact methods. Verify TIR with a test indicator after seating to confirm concentricity before beginning a cut.
