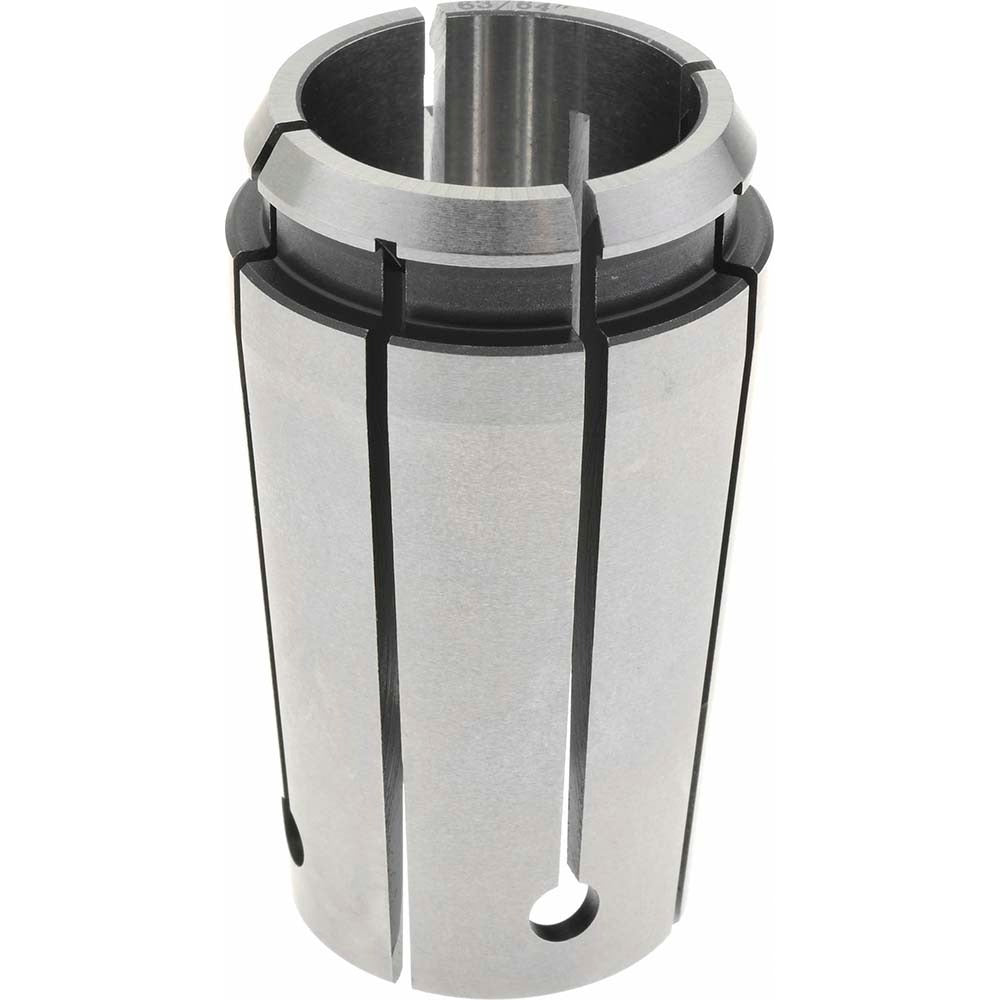

Accupro 584482 Tg Pg 100 Single Angle Collet 0.9844 in

Product Description

The ACCUPRO 584482 is a standard single angle collet designed for use in TG/PG 100 collet chucks on CNC machining centers, mills, and lathes. It accepts a 0.9844 inch (63/64) bore diameter and features a total indicator runout (TIR) of 0.00078 inches, supporting precision workholding applications where concentricity is critical. The body diameter measures 1.278 inches with an overall length of 2.386 inches. This collet is installed by machinists and toolroom technicians as part of a collet chuck assembly to grip round tooling or workpieces securely during cutting operations.

This collet is suited for production machining environments requiring consistent, repeatable tool clamping in TG/PG 100 series chuck systems. It is appropriate for both light and moderate cutting loads across a range of milling, drilling, and reaming applications. The 63/64 bore size makes it a common selection when standard fractional tooling is in use on CNC or manual machines. It ships as a single unit and is compatible with any TG/PG 100 collet chuck designed to accept standard single angle collets of this series.

Key Features

• TG/PG 100 collet series for use in matching chuck bodies
• 0.9844 inch (63/64) bore diameter for standard fractional tooling
• Low TIR of 0.00078 inches for precise concentricity in demanding applications
• 1.278 inch maximum body diameter and 2.386 inch overall length
• Standard single angle design for broad compatibility within the TG/PG 100 system

Compatibility

Designed for use with TG/PG 100 series collet chucks that accept standard single angle collets. Specific chuck model compatibility should be verified against the chuck manufacturer's collet series requirements before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Before inserting or removing a collet, ensure the machine spindle is fully stopped and the chuck is relieved of any clamping pressure. Use the appropriate collet nut and spanner wrench specified for the TG/PG 100 chuck system. Inspect the collet bore and chuck taper for chips or debris before seating to protect TIR performance.
