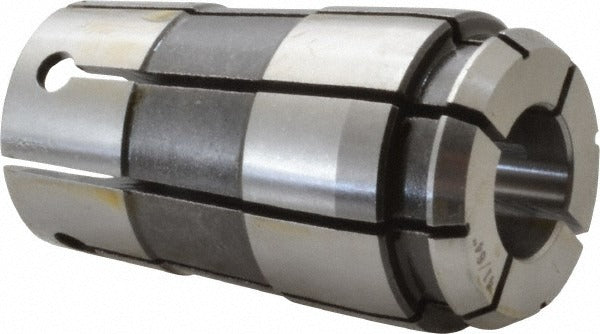

Accupro 584460 Single Angle Collet Tg/pg 100 0.6406 in

Product Description

The ACCUPRO 584460 is a standard single angle collet designed for use in TG/PG 100 collet chucks and toolholding systems. It holds cutting tools or workpieces at a bore size of 0.6406 inches (41/64 inch) and delivers a total indicator runout (TIR) of 0.00078 inches (0.0200 mm), providing the concentricity precision required for milling, drilling, and tapping operations. The collet measures 2.386 inches in overall length with a maximum body diameter of 1.278 inches. It is installed and serviced by machinists and CNC setup technicians working with compatible TG/PG 100 toolholding equipment.

This collet is suited for production machining environments where consistent tool runout and repeatable clamping force are critical. TG/PG 100 collets are commonly used in vertical machining centers, knee mills, and drill presses equipped with TG-style spindle toolholding. The 0.6406-inch bore accommodates straight-shank tooling in that specific diameter range, making it a direct working component in high-cycle machining setups for metalworking and related trades.

Key Features

• TG/PG 100 series collet — fits TG 100 and PG 100 toolholding chucks
• 0.6406-inch (41/64 inch) bore diameter for straight-shank tooling
• TIR of 0.00078 inches (0.0200 mm) for high concentricity performance
• Overall length of 2.386 inches suits standard TG 100 chuck depth
• Maximum body diameter of 1.278 inches conforms to TG/PG 100 spec
• Standard single angle collet geometry for reliable gripping force distribution

Compatibility

Designed for use with TG/PG 100 series collet chucks and toolholders accepting the TG 100 collet standard. Accommodates straight-shank cutting tools with a 0.6406-inch shank diameter.

Installation Notes

Installation is performed by a qualified machinist or CNC technician. Always ensure the machine spindle is fully stopped and de-energized before changing collets. Clean the collet, chuck bore, and nut threads thoroughly before assembly — debris or chips on seating surfaces directly degrade TIR. Do not exceed the torque range specified by the chuck manufacturer for the TG 100 nut, and inspect the collet for cracks or wear before each use.
