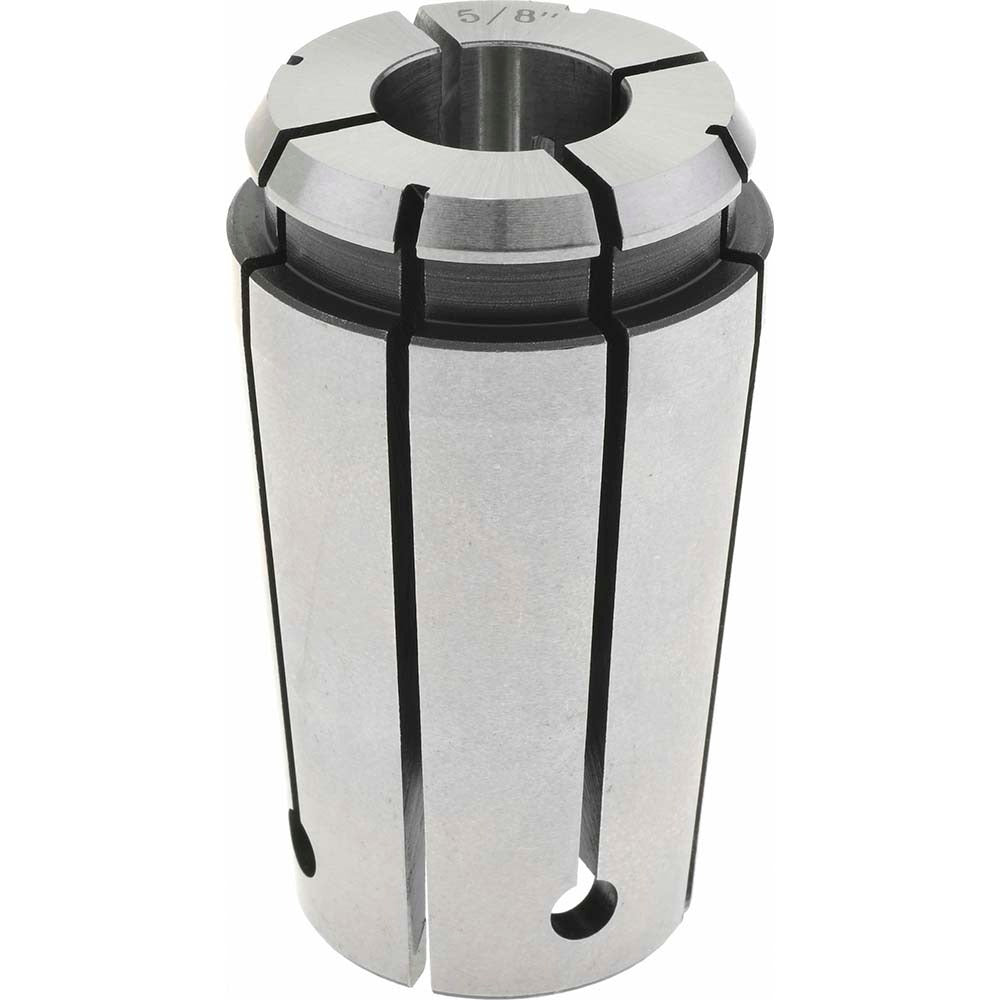

Accupro 584459 Tg Pg 100 Single Angle Collet 5/8 Inch

Product Description

The ACCUPRO 584459 is a standard single angle collet designed for use in TG/PG 100 collet chucks. It accepts a 0.625 inch (5/8 inch) round shank tooling and provides a total indicator runout (TIR) of 0.00078 inches, ensuring precise tool concentricity during milling, drilling, and tapping operations. With an overall length of 2.386 inches and a maximum body diameter of 1.278 inches, this collet fits standard TG 100 and PG 100 toolholders found across CNC machining centers and manual mills. It is installed by machinists and toolroom technicians in production and job-shop environments.

This collet is suited for general-purpose metal removal operations where consistent grip and low runout are required. The TG/PG 100 series is a common choice in production machining environments handling a range of shank diameters. The 5/8 inch bore size accommodates end mills, drills, reamers, and taps with a matching shank diameter. It is appropriate for both light-duty finishing passes and moderate-load roughing applications within the torque capacity of the TG 100 system.

Key Features

• 0.00078 inch TIR (0.0200 mm) for precise tool concentricity
• Fits TG/PG 100 collet chuck systems
• 0.625 inch (5/8 inch) bore accepts common shank tooling
• Maximum body diameter of 1.278 inches for standard TG 100 chuck compatibility
• Overall length of 2.386 inches for proper seating depth in the holder
• Single piece quantity packaging for individual replacement or tooling builds

Compatibility

Designed as an OEM-style replacement or standard addition for TG 100 and PG 100 collet chuck systems accepting 0.625 inch shank tooling.

Installation Notes

Installation is performed by a machinist or toolroom technician. The spindle must be stopped and the machine placed in an appropriate lockout state before changing collets. Ensure the collet bore, chuck taper bore, and clamping nut threads are clean and free of chips or debris before seating the collet. Do not exceed the torque rating of the clamping nut specified by the chuck manufacturer.
