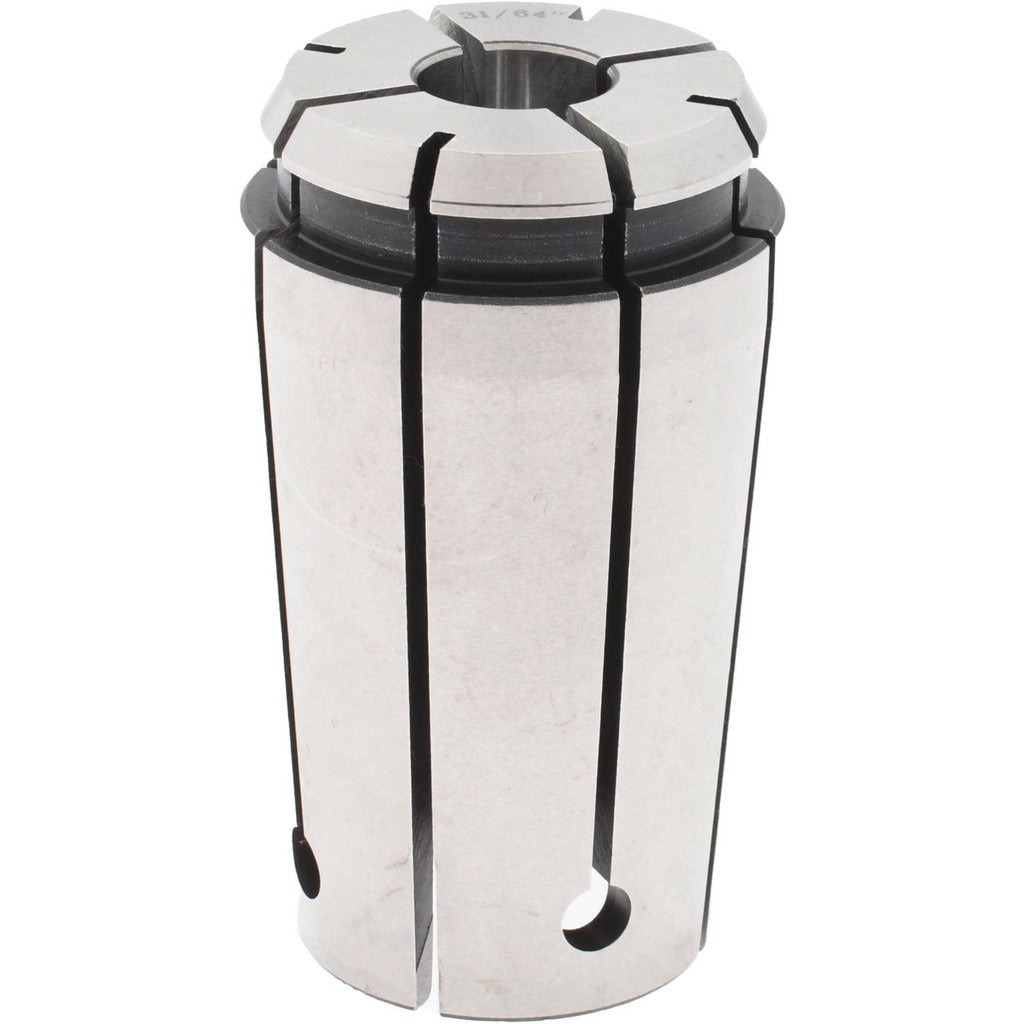

Accupro 584450 Tg/pg 100 Standard Single Angle Collet

Product Description

The ACCUPRO 584450 is a standard single angle collet designed for TG/PG 100 collet series toolholding systems. It accepts a 0.4844 inch (31/64 inch) bore diameter and delivers a total indicator runout (TIR) of 0.00078 inches, making it suitable for precision machining applications where concentricity matters. The collet measures 2.386 inches overall length with a maximum body diameter of 1.278 inches. It is installed by machinists and toolroom technicians in CNC machining centers, milling machines, and manual machines equipped with TG/PG 100 toolholding spindles. At 1 pound, it is a solid, single-piece collet designed for repeatable clamping performance in production and job-shop environments.

This collet is used in machine shops running TG/PG 100 collet chucks and toolholders where a 31/64 inch bore size is required. It suits both roughing and finishing operations on materials where tight runout tolerance is necessary for tool life and surface finish. Typical applications include end mill holding, drill holding, and reamer holding in vertical or horizontal machining centers. Machinists working in production environments will find this collet fits standard TG/PG 100 nuts and bodies without modification.

Key Features

• TG/PG 100 collet series for broad compatibility with TG/PG 100 toolholding systems
• 0.4844 inch (31/64 inch) bore diameter for precise tool clamping
• TIR of 0.00078 inches (0.0200 mm) for tight concentricity control
• Overall length of 2.386 inches fits standard TG/PG 100 collet nuts and bodies
• Maximum body diameter of 1.278 inches
• Single-piece standard angle collet construction weighing 1 pound

Compatibility

Designed as a standard replacement and production collet for TG/PG 100 series collet chucks and toolholders requiring a 0.4844 inch bore diameter.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. The spindle or toolholder must be fully stopped and de-energized before collet installation or removal. Use the appropriate TG/PG 100 collet nut and spanner wrench rated for this series; do not use pipe wrenches or improvised tools that can damage the collet body or nut threads. Inspect the collet bore and seating surfaces for chips or debris before each use to maintain TIR specification.
