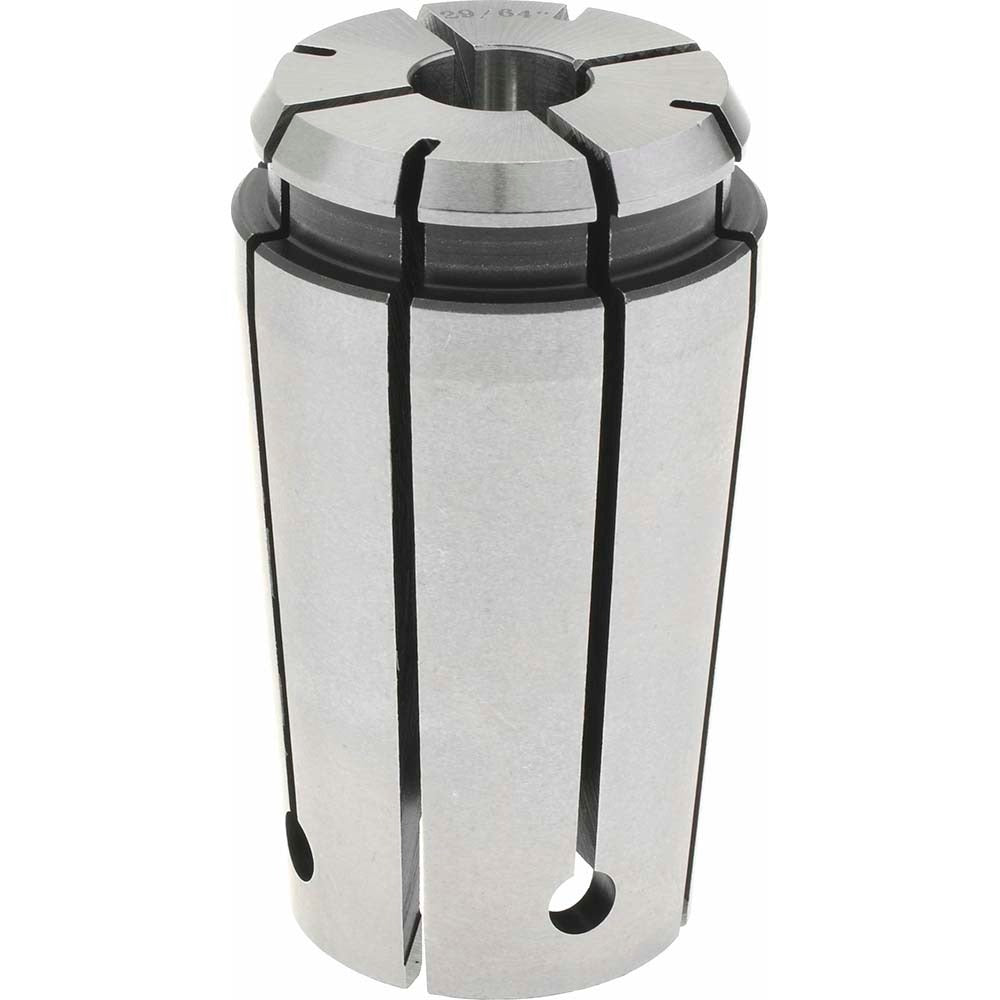

Accupro 584448 Tg/pg 100 Single Angle Collet 0.4531 in

Product Description

The ACCUPRO 584448 is a standard single angle collet designed for use with TG/PG 100 collet chucks. It accepts a 0.4531 inch (29/64 inch) bore diameter and holds a total indicator runout (TIR) of 0.00078 inches, providing accurate, repeatable tool holding for precision machining operations. The overall length measures 2.386 inches, and the maximum body diameter is 1.278 inches. This collet is suited for machinists and toolroom technicians running TG/PG 100 tooling systems on CNC machining centers, lathes, and manual machines where consistent concentricity is required.

This collet fits TG/PG 100 series tooling setups commonly found in production and job shop environments. It is used in applications where secure, concentric clamping of round shank cutting tools is needed, including end mills, drills, and reamers with a 0.4531 inch shank diameter. The single angle design is the standard configuration for TG/PG 100 systems.

Key Features

• 0.4531 inch (29/64 inch) bore for precise tool shank clamping
• TIR of 0.00078 inches for high concentricity and reduced runout
• Maximum body diameter of 1.278 inches for TG/PG 100 chuck compatibility
• Overall length of 2.386 inches for standard tooling reach
• Standard single angle collet design compatible with TG/PG 100 collet chucks

Compatibility

Designed as a standard replacement or additional collet for TG/PG 100 series collet chuck tooling systems.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Before installing or removing the collet, power down the spindle completely and verify the machine is in a safe, locked-out state per your facility lockout/tagout procedures. Use the appropriate collet nut and chuck wrench for TG/PG 100 tooling. Do not exceed the bore capacity or overtighten the collet nut, as this can damage the collet seating surfaces and increase runout.
