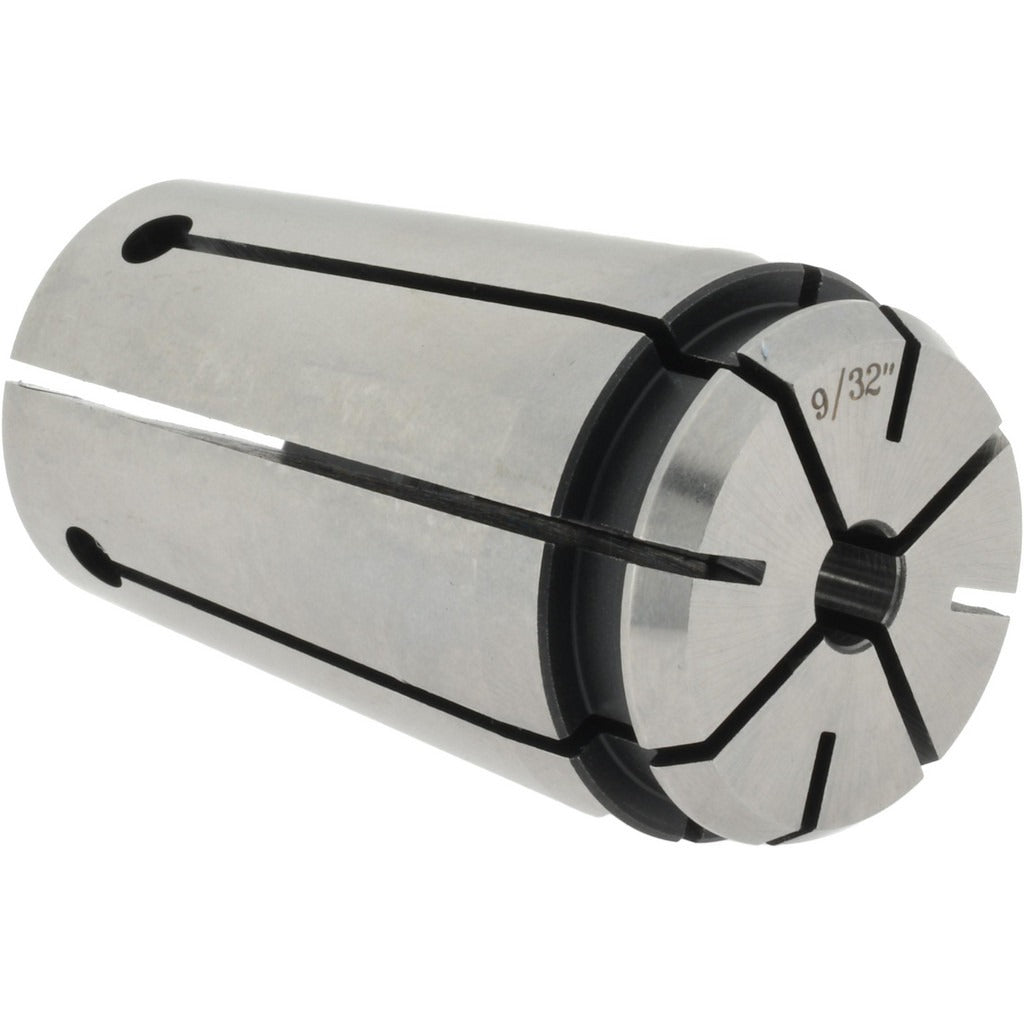

Accupro 584437 Tg/pg 100 Collet 9/32 Inch 0.2813

Product Description

The ACCUPRO 584437 is a standard single angle collet designed for use with TG/PG 100 tooling systems. It accepts a 9/32 inch (0.2813 inches) bore diameter and delivers a total indicator runout (TIR) of 0.00078 inches, making it suitable for precision CNC milling and machining operations where concentricity matters. The body diameter measures 1.2780 inches with an overall length of 2.3860 inches. This collet is installed by machinists and toolroom technicians working with compatible TG/PG 100 collet chucks on vertical and horizontal machining centers.

The 584437 fits into TG/PG 100 series collet chuck systems commonly found on CNC machining centers and manual milling machines in production and toolroom environments. It is suited for holding round shank cutting tools, drills, reamers, and end mills at the 9/32 inch shank diameter. Single-piece construction provides consistent clamping force and repeatable tool seating across multiple setups.

Key Features

• 9/32 inch (0.2813 inches) bore for standard round shank tooling
• TIR of 0.00078 inches for precision concentricity
• Overall length of 2.3860 inches for correct chuck engagement depth
• Maximum body diameter of 1.2780 inches compatible with TG/PG 100 chuck bores
• Standard single angle collet geometry for positive, even clamping

Compatibility

Designed for use with TG/PG 100 series collet chuck systems. Accepts 9/32 inch round shank tooling.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Remove all power and motion from the spindle before changing collets. Ensure the collet, chuck bore, and tool shank are clean and free of chips or coolant residue before assembly, as contamination directly affects runout. Do not exceed the rated clamping torque specified by the chuck manufacturer for the TG/PG 100 system.
