Accupro 584428 Tg/pg 100 Single Angle Collet 0.1406 in

Product Description

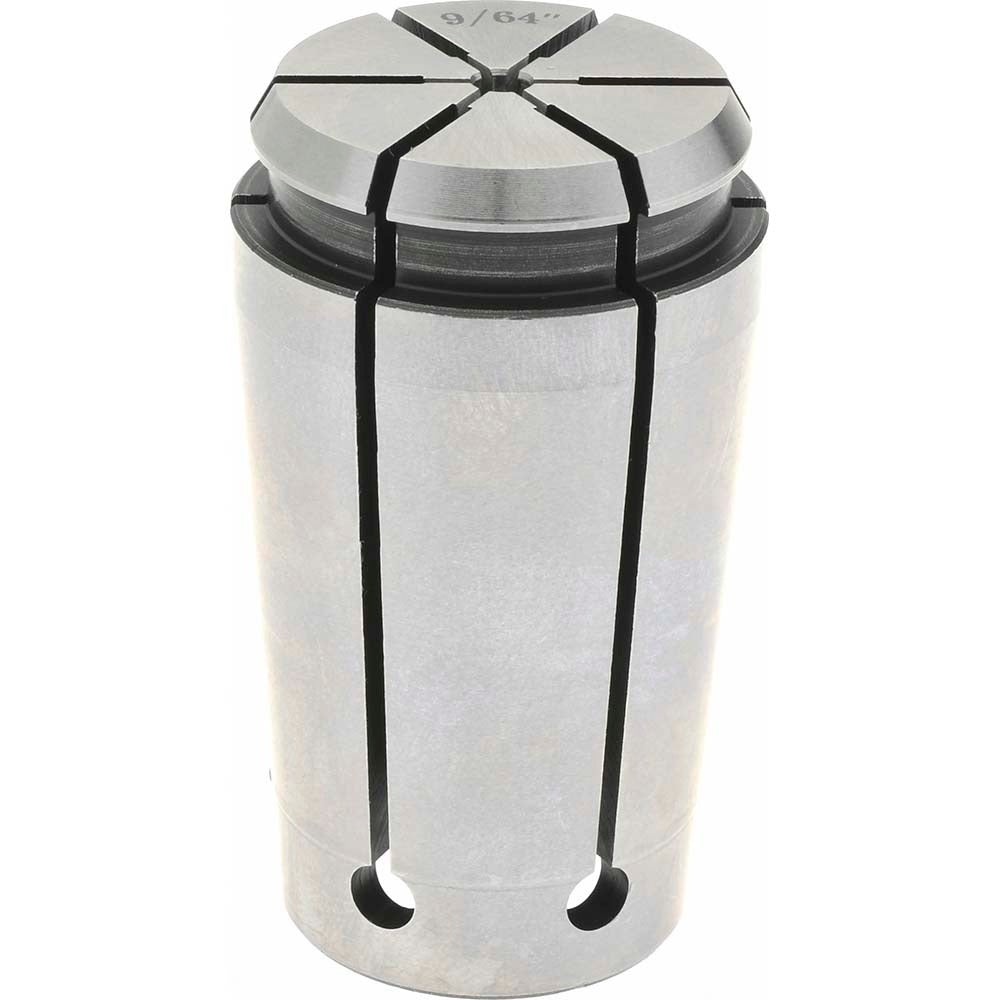

The ACCUPRO 584428 is a standard single angle collet in the TG/PG 100 series, designed for use in TG/PG 100 collet chucks on milling machines, machining centers, and CNC equipment. It accepts a 0.1406 inch (9/64 inch) round shank tool and delivers a total indicator runout (TIR) of 0.00078 inches, supporting tight-tolerance work where concentricity matters. The collet measures 2.386 inches in overall length with a maximum body diameter of 1.278 inches. It is installed by machinists and toolroom technicians performing tool changes or setup operations on compatible spindle systems.

This collet is suited for light to medium-duty machining applications including drilling, reaming, and end milling with 9/64 inch shank tooling. The TG/PG 100 series is a widely used collet standard found in both job shop and production environments. It fits horizontal and vertical machining centers equipped with TG/PG 100 collet chuck bodies. The 0.1406 inch capacity makes it a practical choice when running small-diameter drills, reamers, or end mills that require a secure, low-runout grip.

Key Features

• 0.1406 inch (9/64 inch) collet capacity for small-diameter round shank tooling
• TIR of 0.00078 inches (0.0200 mm) for precision concentricity
• Overall length of 2.386 inches fits standard TG/PG 100 chuck bodies
• Maximum body diameter of 1.278 inches
• Single angle collet design for straightforward tool clamping and release

Compatibility

Designed as a direct-fit replacement collet for TG/PG 100 series collet chuck bodies used in standard CNC and manual machining center spindle setups.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the machine spindle before inserting or removing collets. Use the appropriate collet wrench or chuck wrench rated for the TG/PG 100 series. Inspect the collet bore and chuck body seating surfaces for chips or wear before assembly to maintain stated TIR values.
