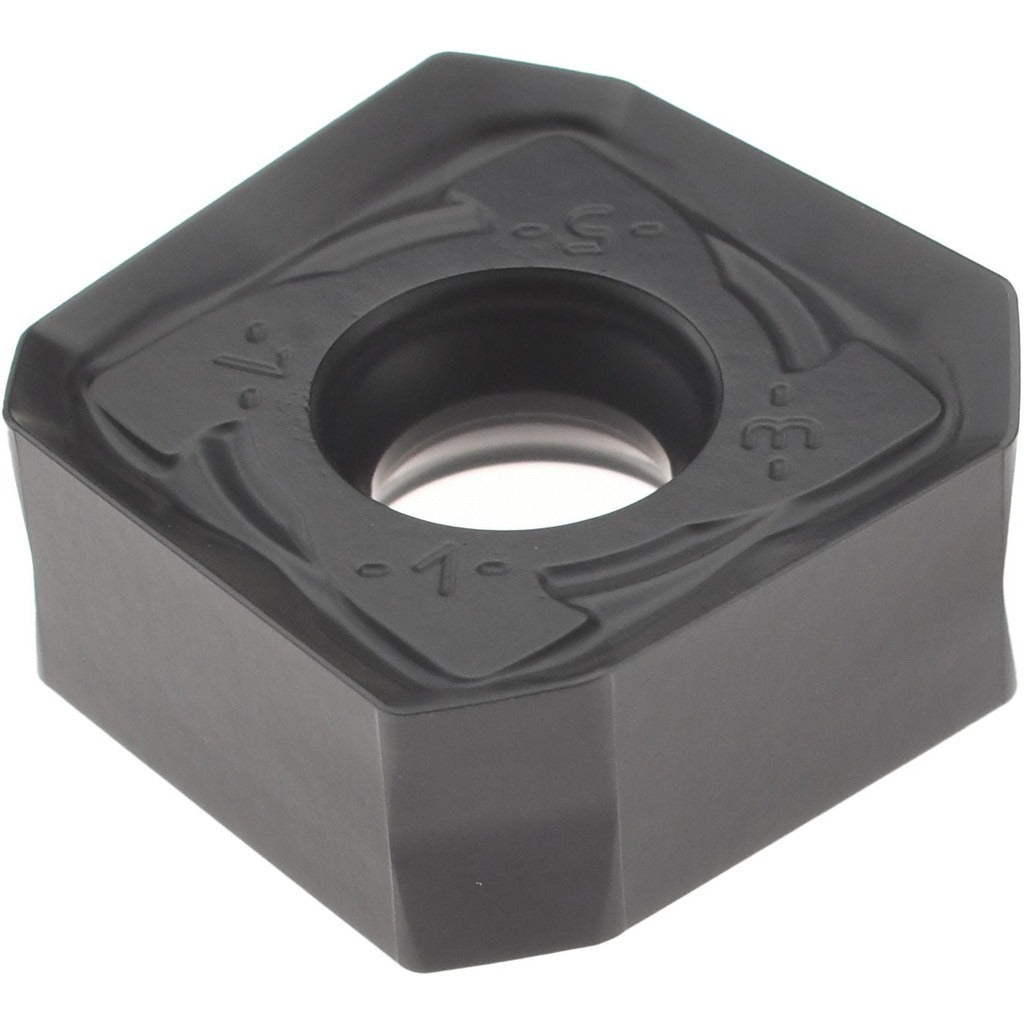

Accupro 56465321 Carbide Milling Insert Soku 15 ACP30M

Product Description

The ACCUPRO 56465321 is a solid carbide milling insert designed for use in SOKU-style cutter bodies. Manufactured to the ISO code SOKU1505AZERHCM, this double-sided square insert carries a CVD coating in manufacturer grade ACP30M, delivering wear resistance suited to demanding milling operations. It features 8 cutting edges, a positive rake geometry, and a 6-degree relief angle. The corner radius measures 1.00 mm (0.0394 inches), and the inscribed circle diameter is 15.88 mm (0.6252 inches). Insert thickness is 6.00 mm (0.2362 inches). Holding is via screw. This insert is handled and installed by machinists and CNC tooling technicians in production and job-shop environments.

This insert fits SOKU-series cutter bodies in the CI series and is suited for right-hand milling operations. The maximum depth of cut is 6.50 mm (0.2559 inches). It is appropriate for applications where positive rake geometry is required to reduce cutting forces, and the CVD coating supports use in a range of workpiece materials where thermal and abrasion resistance are priorities. Sold individually; minimum order quantity is 10 units.

Key Features

• Double-sided insert with 8 cutting edges for extended tool life per insert
• CVD coating in grade ACP30M for wear and thermal resistance
• Positive rake geometry with 6-degree relief angle reduces cutting forces
• Screw-held mounting ensures secure seating in SOKU cutter bodies
• Corner radius of 1.00 mm (0.0394 inches) for controlled surface finish
• Maximum depth of cut of 6.50 mm (0.2559 inches)

Compatibility

Designed for use with SOKU-series cutter bodies, CI series, as indicated by the ISO code SOKU1505AZERHCM. Verify cutter body pocket geometry and insert size code 15 compatibility before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Disengage machine power and lock out the spindle before changing inserts. Use the correct torx or hex key to torque the clamping screw to the cutter body manufacturer's specified value. Inspect the pocket seat for chips or debris before seating the insert, as contamination will affect runout and insert life.
