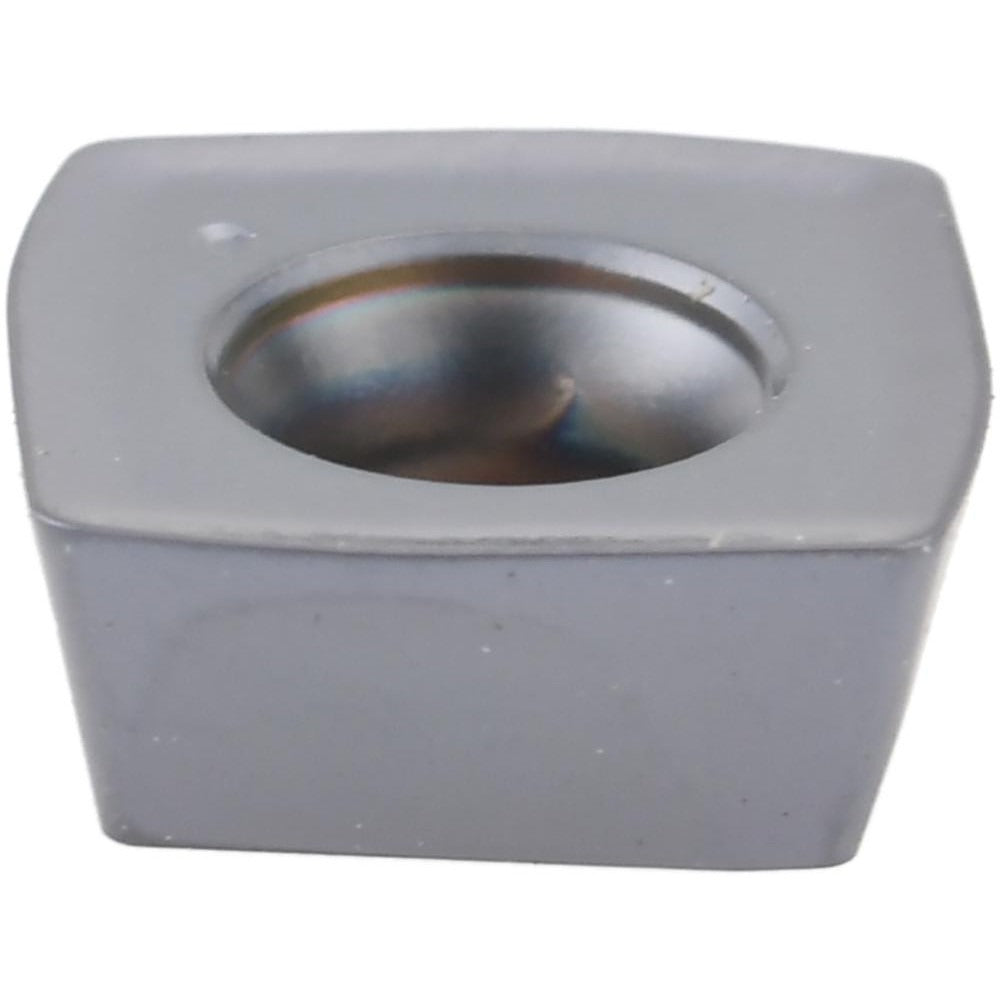

Accupro 54054168 Square Carbide Milling Insert Xplt

Product Description

The ACCUPRO 54054168 is a solid carbide milling insert designed for high-productivity face and shoulder milling operations. Built to ISO code XPLT070305ERSCM, this square-shaped insert features a positive rake geometry and an 11-degree relief angle that together reduce cutting forces and support clean chip evacuation. The PVD coating in ACM40P grade delivers wear resistance suited to demanding milling applications. With four usable cutting edges on a single-sided body, the insert is held in place by screw clamping and suits right-hand cutter tooling in the XPLT and CI series.

This insert fits within the XPLT cutter series and CI series tooling platforms used in CNC milling centers for light to moderate material removal. With a maximum depth of cut of 0.80 mm (0.0315 inches) and an inscribed circle diameter of 6.90 mm (0.2717 inches), it is sized for insert code 07 pockets. Typical applications include face milling, shoulder milling, and finishing passes on ferrous and non-ferrous workpiece materials where a controlled corner radius of 0.50 mm is required to manage edge transition and surface finish.

Key Features

• Solid carbide construction with PVD coating in ACM40P grade for wear resistance
• Positive rake geometry with 11-degree relief angle reduces cutting forces
• Four cutting edges per insert maximize tool life per unit cost
• Square insert shape in size 07 with 0.50 mm corner radius for controlled edge geometry
• Screw-held, single-sided insert for secure seating in compatible toolholders
• ISO code XPLT070305ERSCM for direct cross-reference during procurement

Compatibility

Designed for use with XPLT and CI series milling cutter bodies accepting size 07 insert pockets in a right-hand configuration.

Installation Notes

Insert replacement should be performed by a qualified machinist or toolroom technician with the spindle fully stopped and machine in a locked-out, tagged-out state. Use the correct torx or hex key to the cutter body manufacturer's specified seating procedure when securing the clamping screw. Inspect the insert pocket and screw threads for wear or debris before seating a new insert. Do not exceed the maximum depth of cut specified for this insert size, as overloading a single edge shortens tool life and can cause insert fracture.
