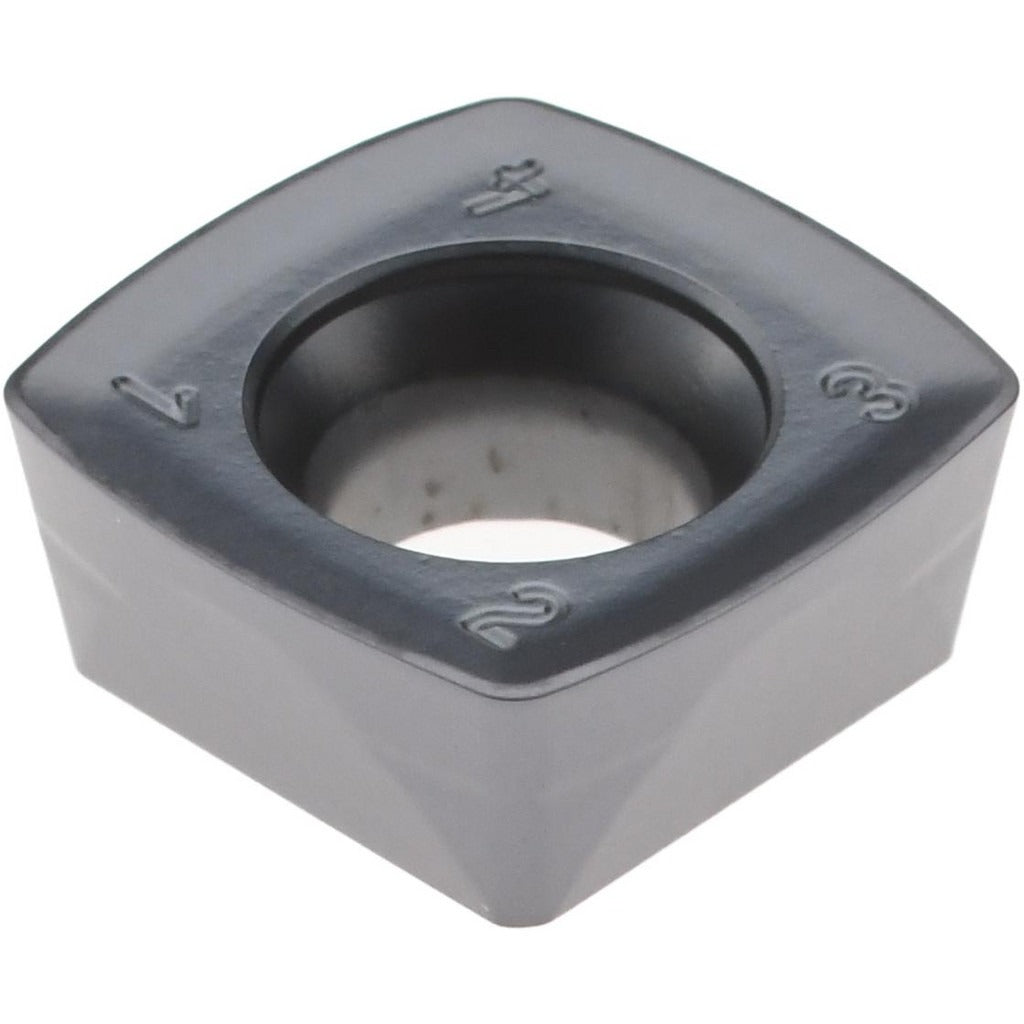

Accupro 54029996 Solid Carbide Square Milling Insert

Product Description

The ACCUPRO 54029996 is a solid carbide milling insert designed for high-performance metal removal in indexable milling applications. Built to XDLT style geometry with an ISO code of XDLT10T308SRHCM, this single-sided, right-hand insert carries a square shape and a manufacturer grade of ACP35M with a PVD coating for wear resistance. It features four cutting edges and a positive rake angle, which reduces cutting forces and heat generation during operation. The corner radius measures 0.0315 inches (0.80 mm), making it suited for finish and semi-finish milling passes where edge geometry consistency matters.

This insert is intended for use in ACCUPRO CI series milling cutters that accept XDLT-style inserts. It is appropriate for machining steel, alloy steel, and similar workpiece materials in both CNC machining center environments and manual milling setups. The maximum depth of cut is 0.0394 inches (1.00 mm), placing this insert in finish to light semi-finish milling applications. Machinists and toolroom technicians working in job shop, production, or maintenance machining environments are the primary installers of this type of insert.

Key Features

• Solid carbide construction with PVD coating for extended tool life
• Square XDLT insert style with ISO designation XDLT10T308SRHCM
• Four usable cutting edges per insert for cost efficiency
• Positive rake geometry reduces cutting forces and chip load
• Corner radius of 0.0315 inches (0.80 mm) for controlled surface finish
• Screw-held, single-sided design for repeatable seating in compatible toolholders

Compatibility

Designed for use with ACCUPRO CI series milling cutters that accept XDLT-style inserts, as specified by the Cutter Series Compatibility designation in the product data.

Installation Notes

Insert replacement is performed by machinists or toolroom technicians using the appropriate Torx or hex key for the clamping screw specified by the toolholder manufacturer. Power down and lock out the machine spindle before indexing or replacing inserts. Inspect the insert pocket seat and clamping screw for damage or debris before seating the new insert. Follow the toolholder manufacturer's clamping procedure to ensure proper insert retention and runout control.
