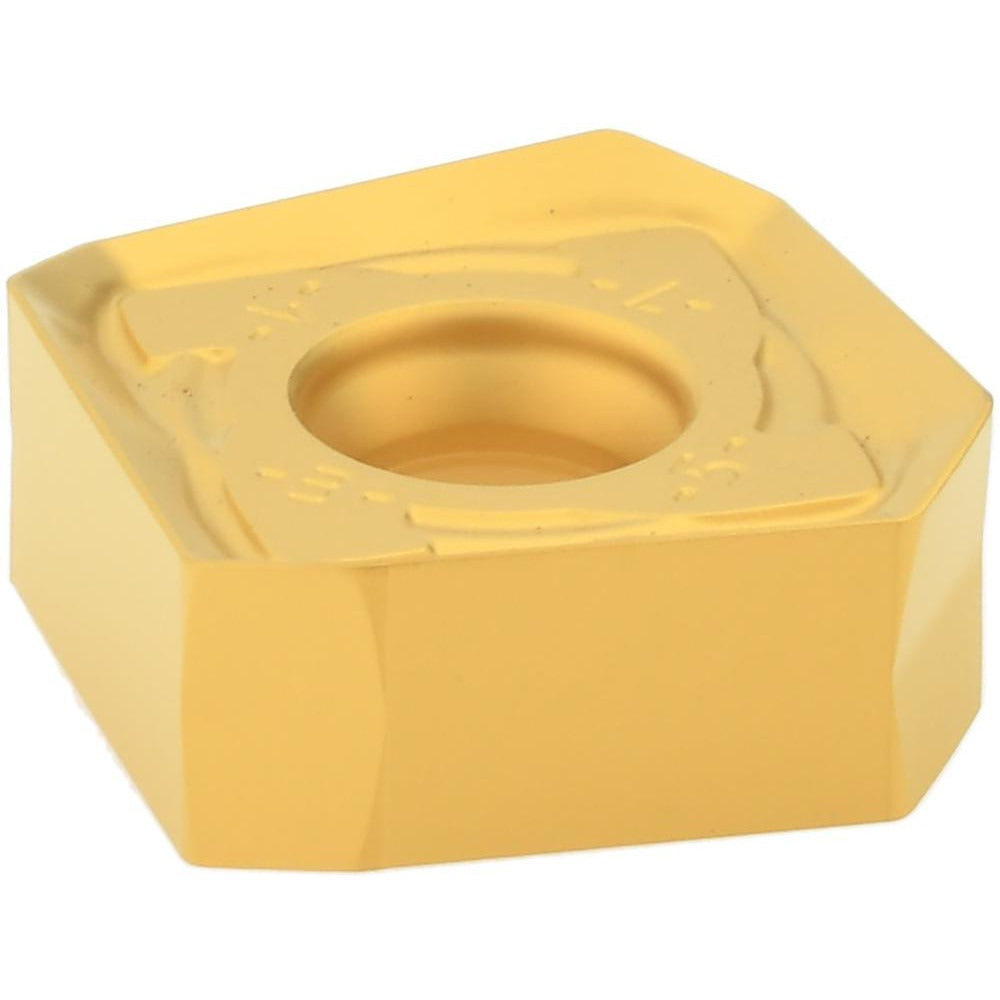

Accupro 54029780 Solid Carbide Square Milling Insert ACP35M

Product Description

The ACCUPRO 54029780 is a solid carbide square milling insert designed for high-performance face and shoulder milling operations. Manufactured in the SOKU style with ISO code SOKU1505AZERHCM, this insert features a CVD coating and a positive rake geometry that promotes free cutting action and reduced cutting forces. With 8 usable cutting edges on a double-sided body, it offers extended tool life per insert. The corner radius measures 1.00 mm (0.0394 inches), and the insert thickness is 6.0 mm (0.2362 inches). It is held in place via a screw-clamping method and is suited for right-hand cutter bodies in the SOKU series.

This insert is used in CNC milling applications across general machining, die and mold work, and production floor environments. It fits SOKU-series cutter bodies and is appropriate for both ferrous and non-ferrous milling at moderate to aggressive feed rates. The CI series designation and ACP35M manufacturer grade make it well suited for interrupted cuts and finishing passes where edge stability is critical. Machinists and toolroom professionals working with vertical or horizontal machining centers will find this insert a reliable production choice.

Key Features

• Solid carbide construction with CVD coating for wear resistance and thermal stability
• Double-sided insert with 8 cutting edges for maximum cost efficiency per insert
• Positive rake geometry reduces cutting forces and heat generation
• Screw-mount insert holding method provides secure seating under heavy feeds
• Maximum depth of cut of 6.50 mm (0.2559 inches) supports both roughing and finishing passes
• 1.00 mm corner radius (0.0394 inches) balances edge strength and surface finish quality

Compatibility

Designed for use with SOKU-series cutter bodies as specified by the manufacturer. Cutter series compatibility is listed as SOKU. Verify insert pocket geometry and seat dimensions against the specific cutter body before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct torque driver for the clamping screw to ensure proper insert contact without cracking the carbide body. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
