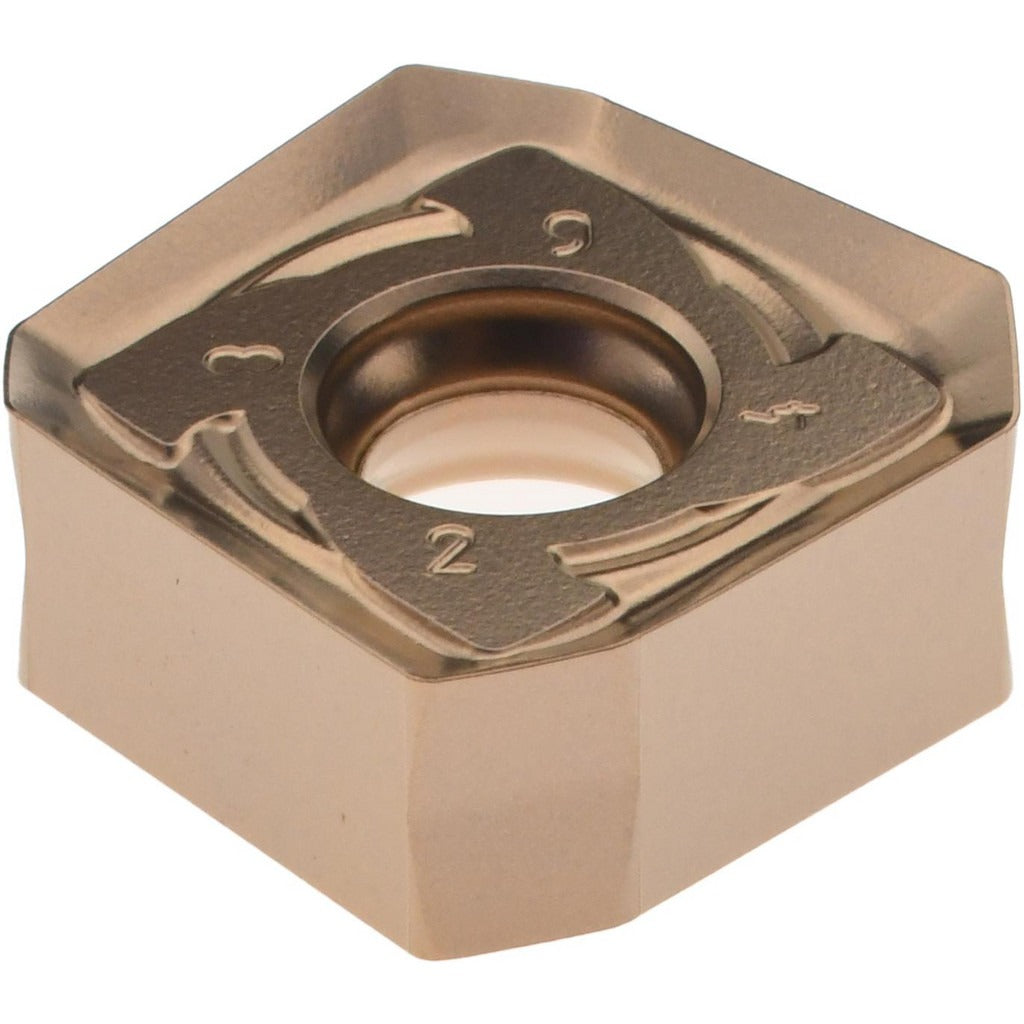

Accupro 54029558 Square Carbide Milling Insert ACS35M

Product Description

The ACCUPRO 54029558 is a solid carbide milling insert designed for use in indexable milling cutters operating in demanding material removal applications. Manufactured to ISO code SOKU1505AZERSCM, this insert features a square shape with a positive rake geometry and a 6-degree relief angle, promoting efficient chip flow and reduced cutting forces. The CVD coating provides elevated wear resistance and thermal stability during high-speed or interrupted cuts. With 8 available cutting edges on a double-sided configuration, the insert delivers strong cost-per-edge value for production environments. A corner radius of 1.00 mm (0.0394 inches) provides a controlled transition at the cutting edge without sacrificing surface finish quality.

This insert is suited for use in right-hand milling cutter bodies from the SOKU cutter series, CI series, and compatible SOKU-style tooling platforms. It is intended for use in CNC milling operations across a range of work materials where CVD-coated solid carbide tooling is specified. Typical applications include face milling, shoulder milling, and slotting in ferrous and non-ferrous materials. Machinists and tooling technicians working in job shops, production machining, or aerospace and general manufacturing environments will find this insert well-suited to standard indexable milling programs.

Key Features

• Solid carbide substrate with CVD coating for extended tool life and thermal resistance
• Double-sided insert with 8 cutting edges, maximizing cost efficiency per insert
• Positive rake geometry with 6-degree relief angle reduces cutting forces and power draw
• 1.00 mm corner radius (0.0394 inches) balances edge strength with surface finish
• Maximum depth of cut of 6.50 mm (0.2559 inches) supports a range of milling pass strategies
• Screw-held mounting method ensures secure, repeatable seating in the cutter body

Compatibility

Designed for use with SOKU cutter series and CI series milling cutter bodies accepting SOKU1505-style inserts. Cutter series compatibility is listed as SOKU. Verify cutter pocket specifications before ordering to confirm fitment.

Installation Notes

Indexable milling insert installation should be performed by a qualified machinist or tooling technician. Always ensure the cutter body is removed from the spindle and the machine is locked out before indexing or replacing inserts. Use the appropriate Torx or hex key to seat the clamping screw to the cutter manufacturer's specified torque range as listed in the toolholder documentation. Inspect the insert pocket and seating surfaces for chips or debris before installing a new insert to prevent improper seating or edge damage.
