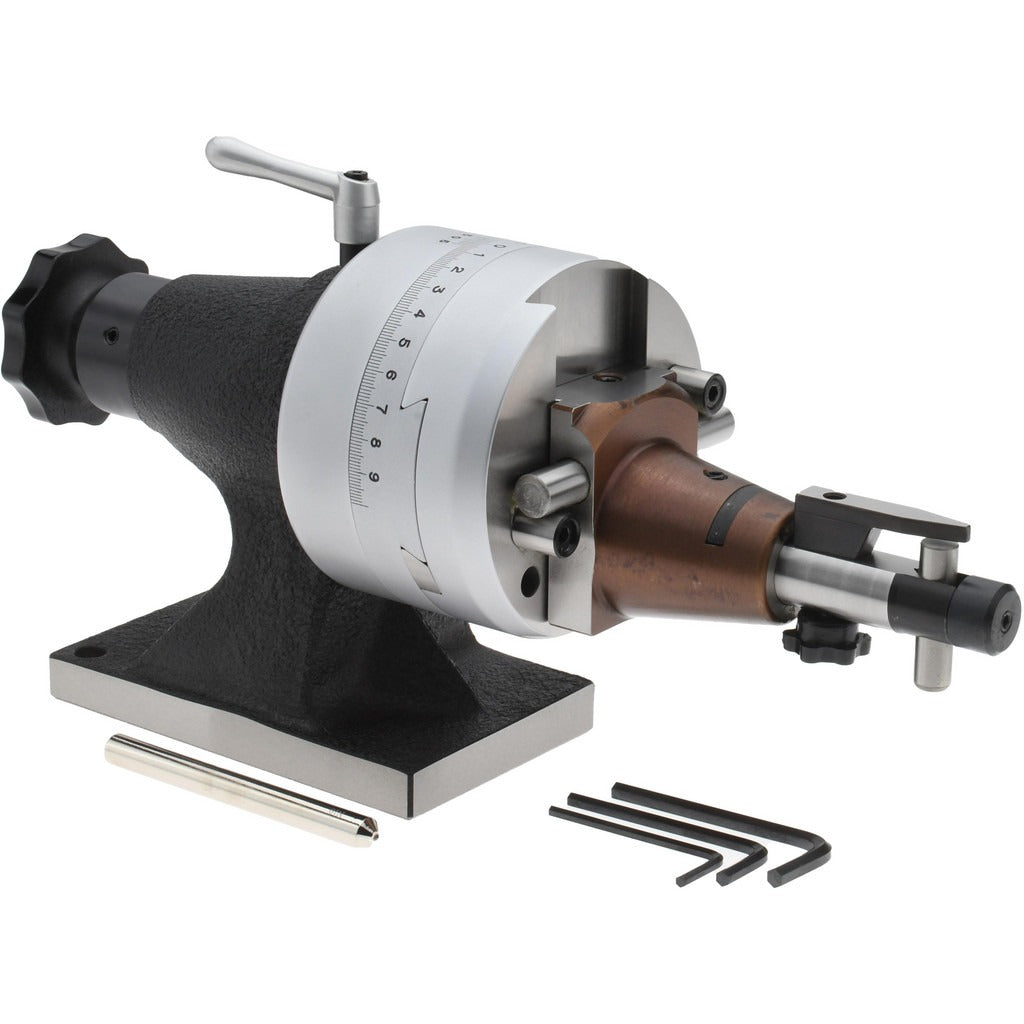

Accupro 5215 Deluxe Radius Angle Wheel Dresser

Product Description

The ACCUPRO 5215 is a deluxe radius and angle wheel dresser designed for precision grinding operations. It provides controlled dressing of grinding wheel profiles using a 2 x 90 degree graduation range for accurate angle and radius forming. The feed handle scale delivers 0.0003-inch feed graduations, allowing fine, repeatable adjustments during the dressing pass. At 11 pounds, the unit offers substantial mass for stable operation on surface grinders and cylindrical grinders. Machinists and grinding technicians install and operate this tool in production and toolroom environments where tight wheel geometry is required.

This wheel dresser suits toolroom, production grinding, and precision surface grinding setups. It is used when a grinding wheel must be dressed to a specific radius or angle for form grinding applications. The 2 x 90 degree graduation range covers a wide variety of angle configurations. The unit measures 4 inches long by 6.5 inches wide by 7.3 inches high, fitting standard surface grinder tables and magnetic chucks without modification. It is appropriate for both job shop and production environments requiring repeatable wheel dressing results.

Key Features

• 2 x 90 degree graduation range supports a wide variety of angle and radius dressing applications
• 0.0003-inch feed graduations on the handle scale for fine, repeatable adjustments
• Deluxe radius and angle dresser configuration for form grinding wheel preparation
• Compact footprint at 4 inches long by 6.5 inches wide by 7.3 inches high
• 11-pound construction provides stability on surface grinder tables

Compatibility

Designed as an OEM-style precision toolroom accessory suitable for use on standard surface grinder tables and magnetic chuck setups that accommodate the unit footprint of 4 inches by 6.5 inches.

Installation Notes

This dresser is set up and operated by machinists or grinding technicians. Before mounting, ensure the grinder spindle is fully powered down and the magnetic chuck is demagnetized. Secure the dresser base firmly to the work surface before beginning any dressing pass. Follow the grinding machine manufacturer guidelines and applicable shop safety procedures when dressing wheels.
