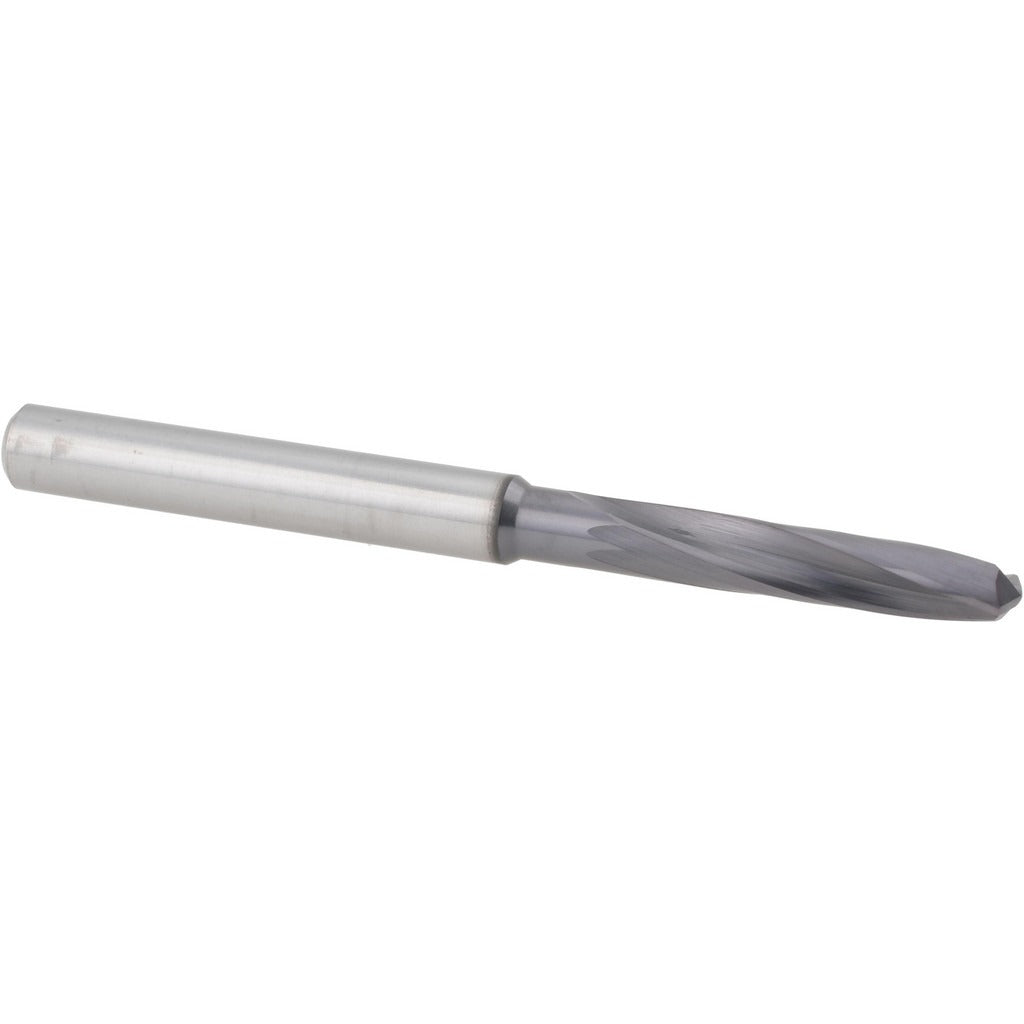

Accupro 4500116 Jobber Drill Bit No.4 Solid Carbide

Product Description

The ACCUPRO 4500116 is a solid carbide jobber-length drill bit sized to wire gauge No. 4 (0.2090 inches decimal equivalent) with a 140-degree split-point geometry and a TiAlN coating. It is designed for drilling hardened materials where standard high-speed steel bits lose their edge quickly. The slow spiral flute controls chip evacuation in tough, abrasive steels and other hardened workpieces. With an overall length of 2.875 inches and a flute length of 1.281 inches, this bit fits standard drill chucks and CNC tool holders with a 0.2500-inch straight cylindrical shank. A UR-thinned web reduces thrust load at the point without compromising rigidity.

This drill bit is suited for machining and fabrication shops, tool rooms, and production environments where hardened steels, tool steels, and similarly abrasive materials are drilled regularly. The right-hand cut and slow spiral make it appropriate for short-chipping materials. It conforms to DIN specification standards. Machinists and CNC operators working on hardened workpieces where standard carbide drills wear prematurely will find this bit a direct fit for those applications.

Key Features

• Solid carbide construction for rigidity and wear resistance in hardened materials
• TiAlN coating increases surface hardness and thermal resistance at the cutting edge
• 140-degree proprietary point angle reduces thrust and improves self-centering
• Slow spiral flute optimized for short-chipping and hardened workpiece materials
• UR-thinned web lowers entry force while maintaining point strength
• Straight cylindrical shank at 0.2500 inches fits standard chucks and collets

Compatibility

Designed as an OEM-style replacement or direct-use drill bit for CNC machining centers, drill presses, and hand-held drilling equipment equipped with a chuck accepting a 0.2500-inch straight shank.

Installation Notes

Installation and use should be performed by qualified machinists or trained shop personnel. Secure the shank fully in the chuck or collet before beginning any drilling operation and confirm the spindle is at a full stop before tool changes. Coolant-through is not supported on this bit; use external cutting fluid or mist coolant appropriate for carbide tooling when drilling hardened steels. Follow applicable shop safety protocols and machine manufacturer guidelines for spindle speeds and feed rates.
