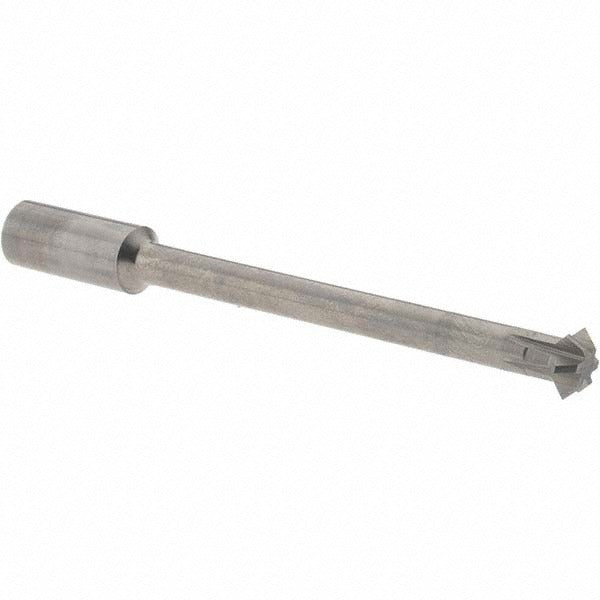

Accupro 41672247 Double Angle Milling Cutter 90 Degree

Product Description

The ACCUPRO 41672247 is a double angle milling cutter designed for precise angular milling operations in metalworking and machining applications. Built from solid carbide, this cutter delivers the hardness and edge retention required for production environments and tight-tolerance work. It features a 90-degree included angle, a 5/16-inch cut diameter, and a 1/8-inch cutting width, making it well-suited for forming V-grooves, chamfers, and angular slots. The 5/16-inch shank diameter provides a secure connection in standard collet holders. With 6 teeth and an uncoated finish, this tool is ready for use on a range of common engineering materials. Machinists and toolroom professionals are the primary users of this cutter.

This cutter is appropriate for use in vertical milling machines and CNC machining centers where angular profile work is required. The 3-inch overall length and 3/16-inch neck diameter with a 2-1/4-inch neck length allow for reach into moderate-depth features without sacrificing rigidity. It is suited for light to medium-duty angular milling in job shop and production settings handling ferrous and non-ferrous workpiece materials. The uncoated solid carbide construction makes it a practical choice when surface coating is not needed or when re-sharpening is anticipated.

Key Features

• 90-degree included angle for standard V-groove and chamfer work
• Solid carbide construction for hardness and wear resistance
• 6-tooth configuration balances cutting speed and chip clearance
• 5/16-inch shank diameter fits standard collet and toolholder systems
• Uncoated finish suitable for a broad range of workpiece materials
• 3-inch overall length with 2-1/4-inch neck length for moderate reach

Compatibility

Designed as a shank-type double angle milling cutter for use in standard collet chucks and end mill holders accepting a 5/16-inch shank diameter on vertical mills and CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter. Seat the shank fully into the collet or toolholder and verify runout before beginning a cut. Follow the tool manufacturer and machine manufacturer guidelines for speed and feed selection appropriate to the workpiece material.
