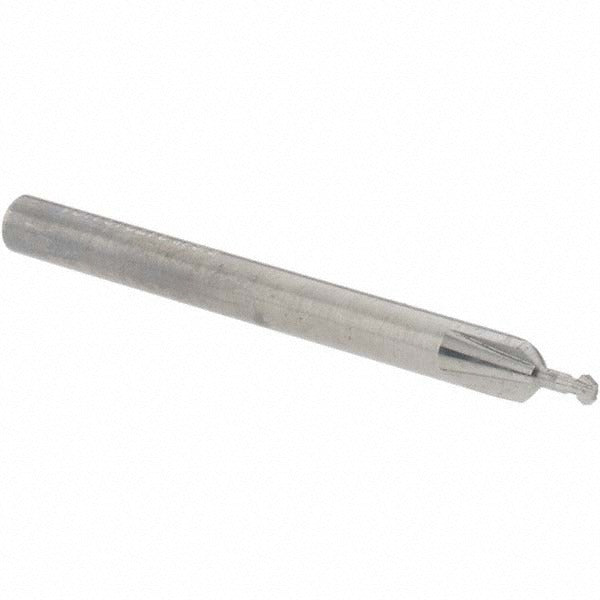

Accupro 41642927 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 41642927 is a double angle milling cutter designed for precision grooving, chamfering, and angular milling operations on metalworking equipment. Built from solid carbide, it delivers the hardness and wear resistance required for consistent performance in demanding cutting applications. The included angle measures 90 degrees, the cut diameter is 5/64 inches, and the cutting width is 0.039 inches. With a 1/8-inch shank diameter and an overall length of 1.5 inches, this cutter is sized for use in small-diameter tooling setups on CNC mills, manual mills, and precision machining centers. It is installed and operated by machinists and tool-and-die professionals.

This cutter is suited for light-duty angular milling, deburring, and V-groove work in ferrous and non-ferrous materials. Its compact geometry makes it appropriate for detailed work in tight spaces where a larger cutter would not fit. The uncoated solid carbide construction is compatible with a range of cutting fluids and dry machining setups. With only 2 flutes, chip evacuation is straightforward, making this a practical choice for shallow-depth passes and fine detail work on precision components.

Key Features

• Solid carbide construction for high hardness and extended tool life
• 90-degree included angle for standard V-groove and chamfer profiles
• 5/64-inch cut diameter with 0.039-inch cutting width for fine detail work
• 1/8-inch shank diameter compatible with small-bore collets and tool holders
• 2-flute design promotes efficient chip clearance in shallow cuts
• Uncoated finish suitable for use with cutting fluids or dry machining

Compatibility

Designed as a direct-fit replacement or new-install double angle milling cutter for CNC and manual milling machines equipped with 1/8-inch collet or tool holder systems.

Installation Notes

Installation is performed by qualified machinists. Ensure the spindle is fully powered down and locked out before changing tooling. Seat the shank fully and securely in a compatible 1/8-inch collet or tool holder and torque to the machine manufacturer's specification. Inspect the cutting edges for chips or wear before each use, as solid carbide is brittle and can fracture if the cutter is dropped or improperly seated.
