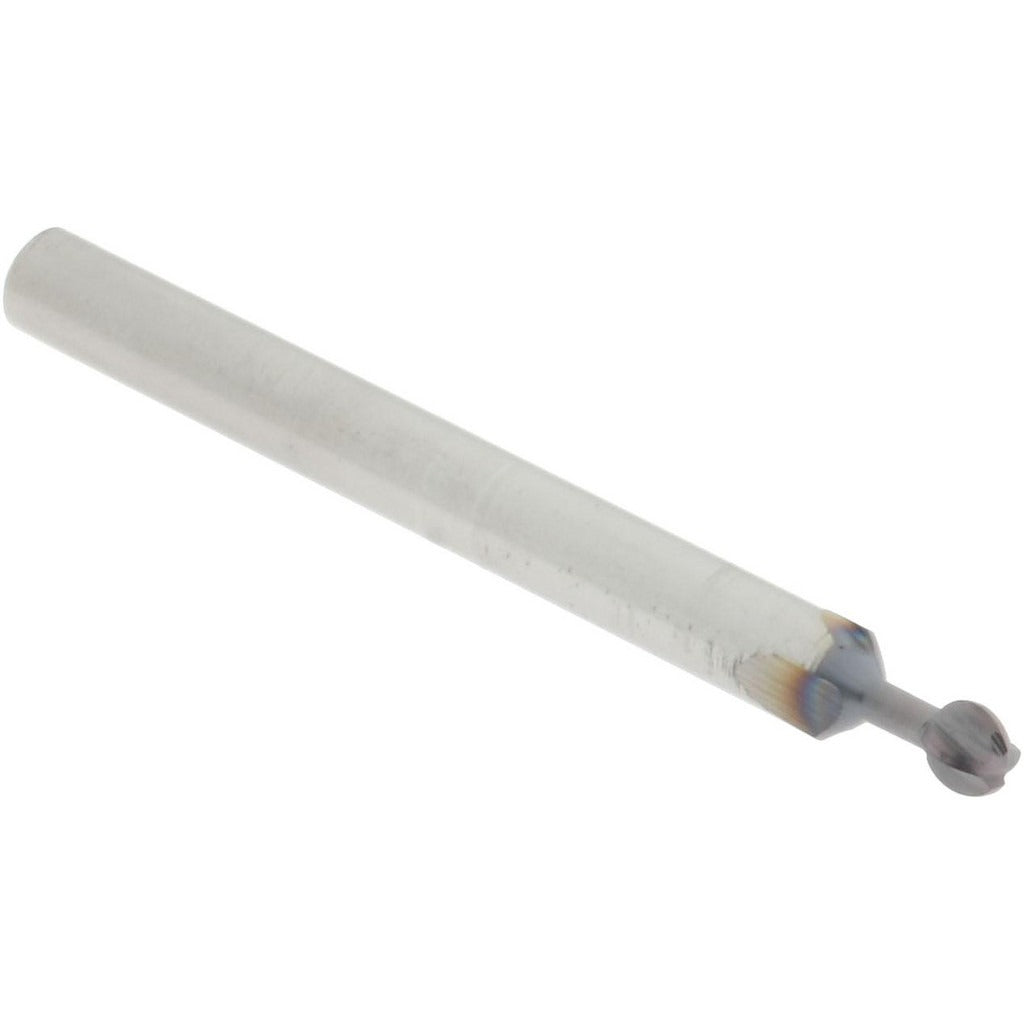

Accupro 41342361 Ball End Mill 5/32 in 4 Flute Carbide

Product Description

The ACCUPRO 41342361 is a single-end ball end mill designed for precision milling operations in metalworking and machining environments. Built from solid carbide, this tool delivers the rigidity and wear resistance required for demanding cutting applications. The cutting edge measures 5/32 inch (0.1562 inches) in diameter with a length of cut of 0.1450 inches and a 4-flute configuration that promotes efficient chip evacuation and a smooth finish. An AlTiCrN coating provides thermal and oxidation resistance, extending tool life in high-speed and dry machining conditions. This end mill is installed and operated by machinists and tool-and-die professionals.

This ball end mill is suited for contouring, profiling, and finishing passes in ferrous and non-ferrous materials where a tight radius and fine surface finish are required. The variable index design helps reduce harmonic vibration during cuts, making it a practical choice for high-precision work in CNC machining centers. The 3/16 inch shank allows it to seat securely in standard collet or end mill holders used in vertical and horizontal milling setups.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding materials
• AlTiCrN coating provides thermal resistance and reduces wear in high-speed and dry cutting
• 4-flute geometry promotes efficient chip removal and improved surface finish
• Variable index design reduces harmonic vibration during cutting passes
• Single-end configuration for standard CNC and manual milling machine use
• Ball nose profile suited for contouring, slotting, and 3D profiling operations

Compatibility

Designed as an OEM-style replacement or direct-use ball end mill for CNC machining centers and manual milling machines accepting a 3/16 inch shank diameter collet or end mill holder.

Installation Notes

Installation is performed by qualified machinists. Ensure the spindle is fully powered down and the machine is locked out before changing tooling. Seat the shank fully and evenly in the collet or holder and torque the retention nut according to the machine manufacturer's specifications. Inspect the cutting edges for chips or wear before each use, and verify runout with a dial indicator when tight tolerances are required.
