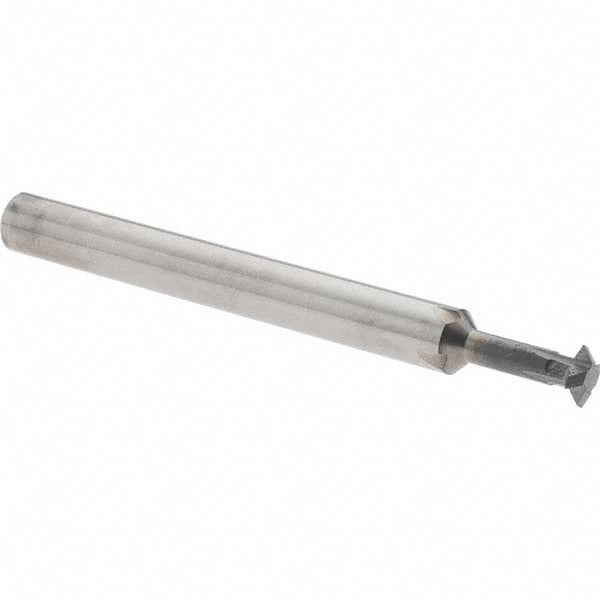

Accupro 38759874 Double Angle Milling Cutter 60 Deg Carbide

Product Description

The ACCUPRO 38759874 is a double angle milling cutter designed for precision grooving, chamfering, and angular milling operations on CNC machining centers and manual mills. Built from solid carbide with an AlTiN coating, it delivers high hardness and heat resistance suited for cutting steel, stainless steel, cast iron, and hardened alloys. The cutter features a 60-degree included angle, a 3/16-inch cut diameter, and a 0.055-inch cut width. With 4 teeth and a 3/16-inch straight shank, it connects directly to collet-style toolholders. This tool is typically installed and operated by machinists and tool-and-die professionals working in job shop and production environments.

This cutter is well matched to light-duty angular milling and deburring applications requiring tight geometry control. The 3/32-inch neck diameter and 0.367-inch neck length provide clearance in confined workpiece features. The 2-inch overall length keeps the tool compact for reduced runout and improved rigidity at the spindle. It is appropriate for use on both conventional and high-speed machining setups where a small-diameter, short-reach double angle cutter is required.

Key Features

• Solid carbide construction for wear resistance and dimensional stability under cutting loads
• AlTiN coating improves heat resistance and tool life in ferrous and hardened materials
• 60-degree included angle for chamfering, V-grooving, and angular form milling
• 4-tooth configuration balances chip clearance and surface finish at moderate feed rates
• 3/32-inch neck diameter provides clearance in narrow or recessed workpiece features
• 3/16-inch straight shank compatible with standard collet and end mill toolholders

Compatibility

Designed as a direct-fit replacement-style double angle milling cutter for use with standard 3/16-inch collet or end mill toolholding systems on CNC and manual milling machines.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is in a locked-out, de-energized state before changing tooling. Seat the shank fully into the collet or toolholder and torque the retention nut to the toolholder specification. Inspect the cutting edges for chips or coating damage before each use, and verify runout with a dial indicator when tight tolerances are required.
