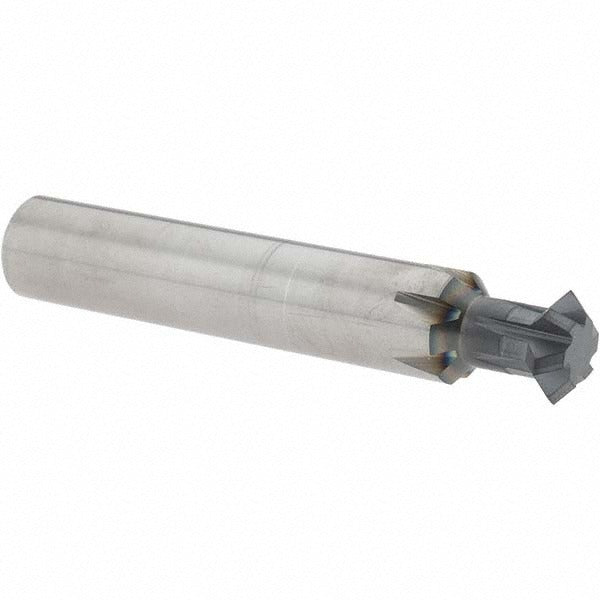

Accupro 38532990 Double Angle Milling Cutter 90 Deg 1/2 in

Product Description

The ACCUPRO 38532990 is a double angle milling cutter designed for precision milling of V-slots, dovetails, and chamfer profiles in metalworking and machining applications. Built from solid carbide with an AlTiN coating, it delivers high heat resistance and extended tool life in ferrous and hardened materials. The cutter features a 90-degree included angle, a 1/2-inch cut diameter, and a 0.187-inch cutting width. With 6 teeth and a 1/2-inch shank diameter, it is suited for CNC machining centers and manual milling machines requiring consistent, repeatable angular cuts. Overall length is 3 inches.

This cutter is intended for use in production and job-shop machining environments where angular milling, chamfering, and V-groove cutting are required. The solid carbide construction and AlTiN coating make it appropriate for dry or semi-dry cutting conditions in steel, stainless steel, cast iron, and similar materials. The 5/16-inch neck diameter and 0.499-inch neck length allow access to moderate-depth features. Machinists, tool-and-die makers, and CNC operators are the primary installers and users of this tool.

Key Features

• 90-degree included angle for precise V-slot, chamfer, and dovetail milling
• Solid carbide construction for rigidity and wear resistance
• AlTiN coating provides high-temperature resistance and reduced tool wear
• 6-tooth design for consistent chip load and surface finish
• 1/2-inch shank diameter for standard collet and end mill holder compatibility
• 3-inch overall length suits a wide range of milling setups

Compatibility

Designed as a direct-mount replacement or new-application double angle milling cutter for CNC machining centers and manual milling machines accepting a 1/2-inch shank with standard collet chucks or end mill holders.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine powered down and the spindle fully stopped. Secure the shank firmly in a collet or end mill holder rated for the shank diameter before operation. Verify runout with a dial indicator before cutting to protect both the cutter and the workpiece. Follow the machine manufacturer guidelines and applicable shop safety codes when setting speeds and feeds for carbide tooling.
