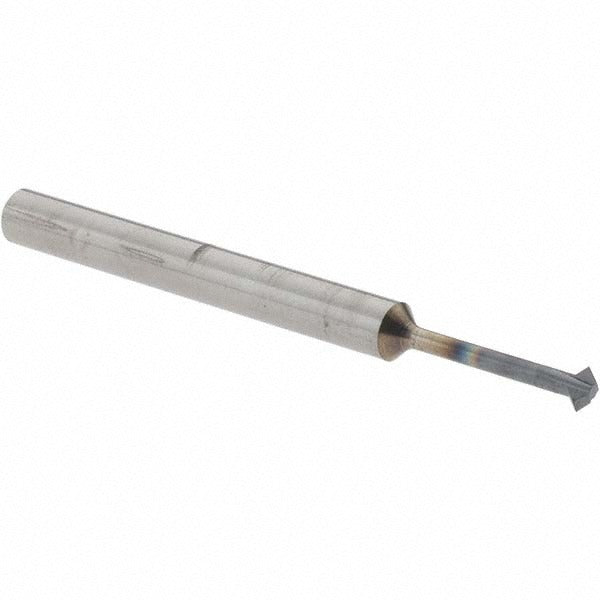

Accupro 38473005 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 38473005 is a solid carbide double angle milling cutter designed for precision profiling, chamfering, and dovetail slot work on CNC machining centers and manual milling machines. With a 90-degree included angle and a 3/32-inch cutting diameter, this cutter delivers clean, accurate cuts in tight geometries. The AlTiN (aluminum titanium nitride) coating improves heat resistance and extends tool life during dry or semi-dry cutting operations in hardened steels, stainless steels, and high-temperature alloys. Two cutting teeth provide a balance of chip clearance and finish quality at this diameter. Installed and set up by machinists and toolroom technicians, this cutter suits precision shops where dimensional accuracy is critical.

This cutter is suited for small-scale profiling, V-groove cutting, deburring, and chamfering operations in both production and toolroom environments. Its 1/8-inch shank diameter fits standard collet systems and tool holders used on CNC mills and manual knee mills. The 3/64-inch neck diameter and 27/64-inch neck length allow access to shallow recesses and intricate part features without tool holder interference. It is most commonly applied in aerospace, mold and die, and precision component manufacturing where fine detail work is required.

Key Features

• 90-degree included angle for precise V-groove and chamfer geometry
• Solid carbide construction for rigidity and dimensional stability
• AlTiN coating for elevated heat resistance and extended tool life
• 3/64-inch cutting width for fine, narrow profiling passes
• 1/8-inch shank diameter compatible with standard collet tool holders
• 2-flute design optimizes chip evacuation at small cutting diameters

Compatibility

Designed for use in standard 1/8-inch collet chucks and compatible tool holders on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully powered down and locked out before changing tooling. Seat the shank fully into the collet and torque the collet nut to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning a cut, particularly at small diameters where deflection can affect dimensional accuracy.
