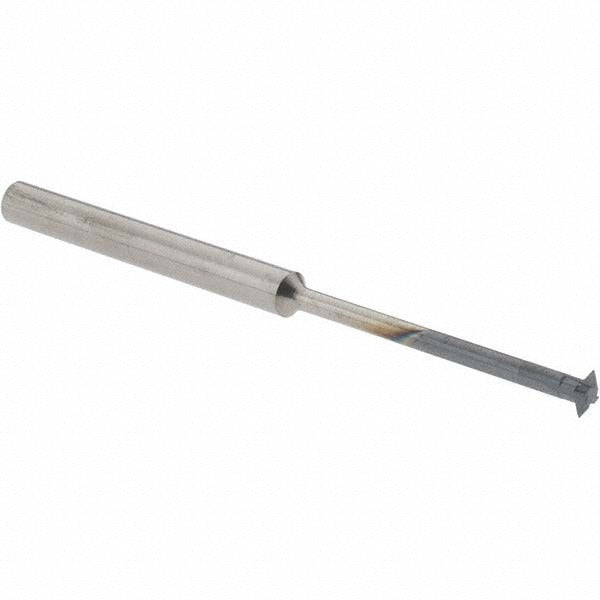

Accupro 38466629 Double Angle Milling Cutter 60 Degree Carbide

Product Description

The ACCUPRO 38466629 is a solid carbide double angle milling cutter designed for precision milling of V-grooves, dovetails, and chamfers in metalworking applications. The cutter features a 60-degree included angle, a 0.125-inch cut diameter, and a 0.036-inch cutting width. An AlTiN (aluminum titanium nitride) coating increases surface hardness and heat resistance, extending tool life during high-speed dry or semi-dry cutting. Four cutting teeth deliver a balance of chip clearance and finish quality. This cutter is sized for use in CNC machining centers, manual mills, and tool-and-die work where tight tolerances and consistent geometry are required.

The 38466629 is suited for job shops, aerospace, mold and die, and precision machining environments. The 0.125-inch shank diameter and 2.0-inch overall length make it compatible with standard collet systems. The 0.0625-inch neck diameter and 0.911-inch neck length allow access to recessed features and narrow channels. It is typically run by machinists performing profile milling, groove finishing, or edge chamfering on ferrous and non-ferrous workpiece materials.

Key Features

• 60-degree included angle for V-groove and chamfer milling
• Solid carbide construction for rigidity and dimensional stability
• AlTiN coating for elevated heat resistance and extended tool life
• 4-flute design balances chip evacuation with surface finish
• 0.0625-inch neck diameter enables access to narrow or recessed features
• 0.125-inch shank fits standard collet chucks without adapters

Compatibility

Designed for use with standard 0.125-inch collet systems on CNC machining centers and manual milling machines. No specific compatible machine models were provided in the product data.

Installation Notes

Installation is performed by qualified machinists following standard tool-change procedures. Power down and lock out the spindle before seating or removing the cutter. Seat the shank fully and evenly in the collet to the recommended engagement depth before tightening. Verify runout with a dial indicator before first cut to protect both the tool and the workpiece.
