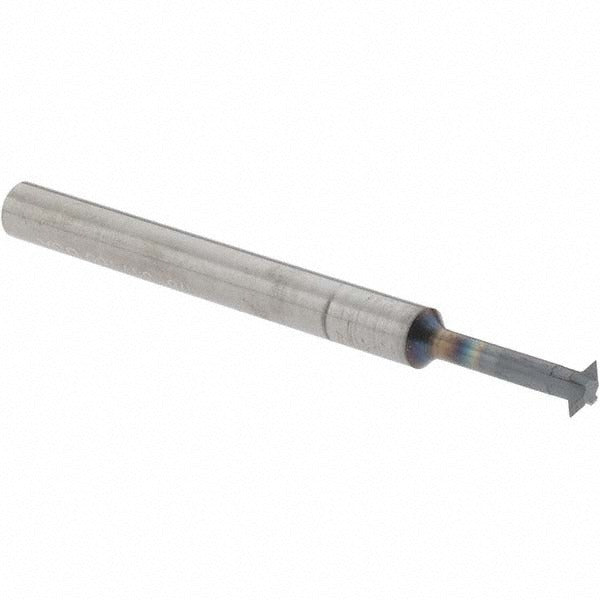

Accupro 38466611 Double Angle Milling Cutter 60 Deg 1/8 in

Product Description

The ACCUPRO 38466611 is a double angle milling cutter designed for precision slot milling, chamfering, and dovetail groove work in metalworking applications. Built from solid carbide and finished with an AlTiN (aluminum titanium nitride) coating, this cutter delivers heat resistance and extended tool life in ferrous and hardened materials. The included angle measures 60 degrees, the cut diameter is 1/8 inch, and the cutting width is 0.036 inches. With 4 teeth and a 1/8-inch shank, it fits standard collet chucks and is well suited for CNC milling centers and manual mills where tight-tolerance angular profiles are required.

This cutter is intended for use in precision machining environments, including tool and die shops, mold making, and general metalworking. It performs best in applications that require a defined angular cut profile at small scales, such as engraving, deburring angled edges, or producing symmetrical V-grooves. The solid carbide construction and AlTiN coating make it appropriate for dry or light-coolant cutting in steel, stainless, cast iron, and similar alloys. A licensed machinist or CNC operator typically selects and installs this tool.

Key Features

• 60-degree included angle for precise V-groove and chamfer profiles
• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating improves heat resistance and extends tool life in ferrous alloys
• 4-tooth configuration balances chip evacuation and surface finish at small diameters
• 1/8-inch shank for compatibility with standard collet systems
• Compact 0.036-inch cutting width suited to fine, detail-scale milling operations

Compatibility

Designed as a shank-type double angle milling cutter for use in CNC machining centers and manual milling machines equipped with 1/8-inch collet or chuck systems.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the spindle before loading or removing the cutter from the collet. Ensure the collet bore is clean and free of debris before seating the shank, and verify runout with a dial indicator prior to production cuts. Follow machine manufacturer torque specifications for the collet nut and confirm the tool stick-out is minimized to reduce deflection.
