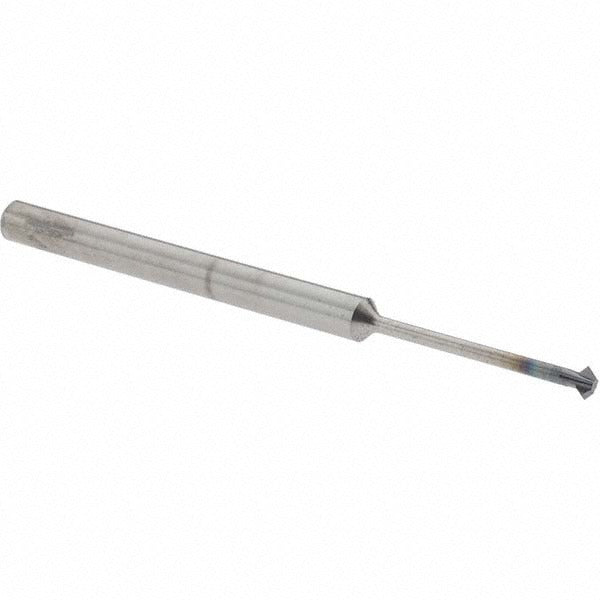

Accupro 38155446 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 38155446 is a solid carbide double angle milling cutter designed for precision milling of V-grooves, chamfers, and angular profiles in metalworking applications. Built with a 90-degree included angle and a 3/32-inch cutting diameter, this cutter features an AlTiN (aluminum titanium nitride) coating that extends tool life in high-temperature cutting environments. The 1/8-inch shank connects directly to standard collet holders, and the 2-inch overall length provides sufficient reach for most milling setups. With 2 cutting teeth and a 3/64-inch cutting width, it is suited for fine-detail work where controlled material removal is required. Machinists and tooling professionals install this cutter in CNC machining centers and manual mills.

This cutter is used in precision metalworking environments, primarily for cutting angular features, dovetail prep work, and chamfering operations in ferrous and non-ferrous metals. The AlTiN coating makes it particularly effective in dry or semi-dry cutting conditions where heat resistance is critical. The compact 3/32-inch cutting diameter and narrow 3/64-inch cutting width make it well suited for small-part machining and detail work on components that require tight angular tolerances. It is typically installed in applications requiring a clean, precise 90-degree angular cut profile.

Key Features

• 90-degree included angle for precise V-groove and chamfer milling
• Solid carbide construction for rigidity and wear resistance
• AlTiN coating for extended tool life in high-heat cutting conditions
• 3/32-inch cutting diameter with 3/64-inch cutting width for fine detail work
• 2-flute design for controlled chip evacuation in small-diameter cuts
• 1/8-inch shank diameter compatible with standard collet systems

Compatibility

Designed for use with standard 1/8-inch collet holders in CNC machining centers and manual milling machines. Suitable for ferrous and non-ferrous metal cutting applications requiring a 90-degree double angle cutter profile.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before changing cutters. Seat the 1/8-inch shank fully in the collet and torque the collet nut to the tool holder manufacturer specification. Verify runout with a dial indicator before beginning a cut, as runout in small-diameter cutters accelerates tool wear and reduces surface finish quality.
