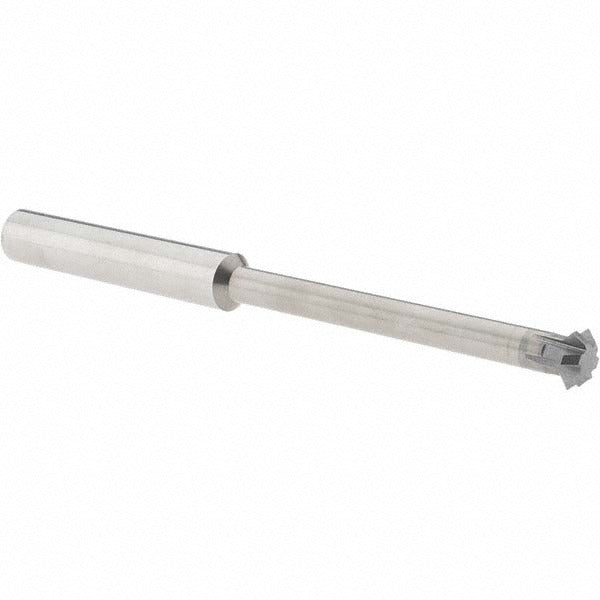

Accupro 38140265 Double Angle Milling Cutter 90 Deg Solid Carbide

Product Description

The ACCUPRO 38140265 is a double angle milling cutter designed for precise angular slot and chamfer milling operations on milling machines and machining centers. Built from solid carbide, this cutter delivers the rigidity and edge retention needed for consistent performance in ferrous and non-ferrous materials. The included angle is 90 degrees, the cut diameter is 0.5 inches, and the cutting width is 0.187 inches. With 6 teeth and an uncoated finish, it is suited for applications where re-sharpening or coating customization is preferred. A licensed machinist or tool-and-die technician is the typical installer and operator.

This cutter is used in precision machining environments including job shops, production facilities, and toolrooms. It fits a standard 0.5-inch shank holder, making it compatible with common milling setups. The 5/16-inch neck diameter allows clearance in tighter pockets and contoured workpieces. At 6 inches overall length, it provides sufficient reach for most standard milling applications. It is appropriate for both manual knee mills and CNC vertical machining centers where angular form milling is required.

Key Features

• Solid carbide construction for rigidity and extended tool life
• 90-degree included angle for precise chamfer and angular slot profiles
• 0.187-inch cutting width for controlled material removal
• 6-tooth configuration balances chip load and surface finish
• Uncoated finish suitable for re-sharpening or custom coating application
• 5/16-inch neck diameter provides clearance in confined cutting zones

Compatibility

Designed for use with standard 1/2-inch shank milling tool holders on vertical milling machines and CNC machining centers requiring double angle form cutters.

Installation Notes

Installation and operation of this cutter should be performed by a qualified machinist familiar with milling tool setup and speeds-and-feeds selection. Power down and lock out the machine spindle before inserting or removing the cutter from its holder. Ensure the shank is fully seated and the tool holder drawbar or collet is properly torqued per the machine manufacturer's specifications before operation. Follow applicable shop safety procedures and machine guarding requirements during all cutting operations.
