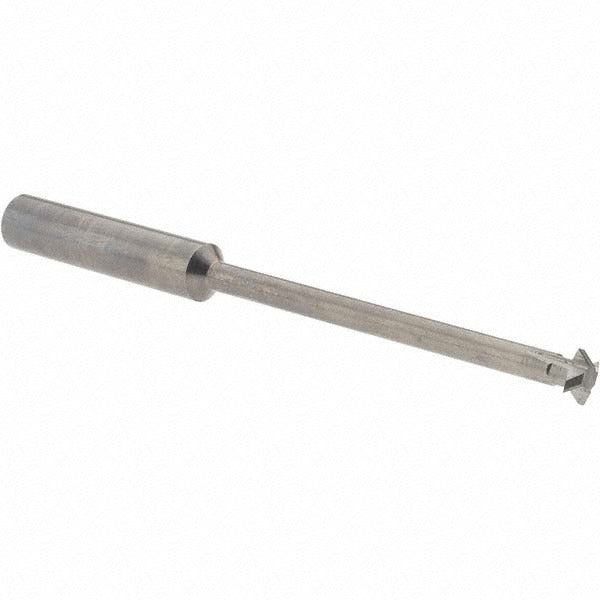

Accupro 38137998 Double Angle Milling Cutter 60 Degree

Product Description

The ACCUPRO 38137998 is a solid carbide double angle milling cutter designed for precision V-groove, chamfer, and angular milling operations on CNC machining centers and manual milling machines. The cutter features a 60-degree included angle and a 1/4-inch cut diameter with a 0.072-inch cutting width, making it well suited for tight-tolerance work in hardened and difficult-to-machine materials. The 1/4-inch shank diameter and 1/8-inch neck diameter allow access to confined features. With 4 teeth and an uncoated solid carbide construction, this tool delivers sharp, consistent cutting edges for clean angular profiles. Overall length is 3 inches.

This cutter is intended for machinists and toolmakers working in job shop, production, and toolroom environments. It handles angular slotting, V-groove milling, and undercut operations in ferrous and non-ferrous materials. The compact 1/4-inch shank fits standard collet chucks and end mill holders, making it a practical choice for both CNC and manual mill setups where angular form milling is required at small diameters.

Key Features

• 60-degree included angle for V-groove and chamfer milling
• Solid carbide construction for rigidity and wear resistance in hard materials
• 0.072-inch cutting width for narrow, precise angular profiles
• 4-tooth design balances chip evacuation with surface finish quality
• 1/8-inch neck diameter allows access to tight or recessed features
• Uncoated finish suitable for use with or without cutting fluid

Compatibility

Designed as an OEM-style replacement double angle milling cutter for use in standard 1/4-inch collet chucks, end mill holders, and compatible toolholding systems on CNC machining centers and manual milling machines.

Installation Notes

This tool is installed and operated by machinists and CNC operators. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully in a properly sized collet or end mill holder and torque the retention mechanism according to the toolholder manufacturer's specifications. Inspect the cutting edges for chipping before each use, as solid carbide is brittle and sensitive to interrupted cuts or excessive runout.
