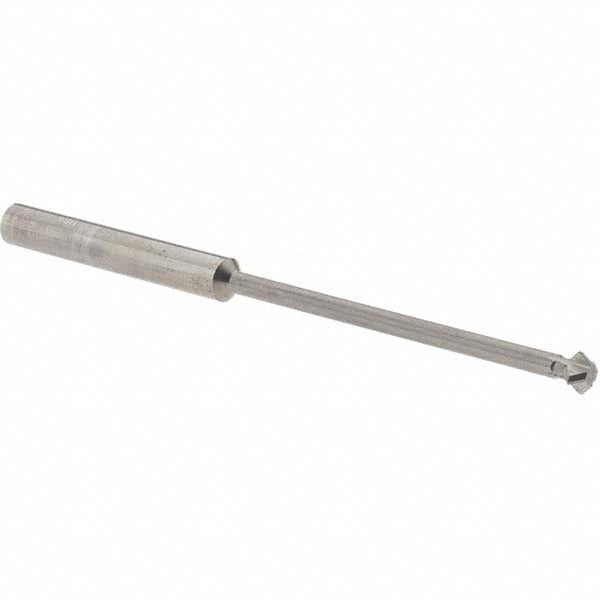

Accupro 38058426 Double Angle Milling Cutter 90 Degree

Product Description

The ACCUPRO 38058426 is a double angle milling cutter designed for precision slot and chamfer milling operations in metalworking and machining environments. Built from solid carbide, this cutter features a 90-degree included angle, a 3/16 inch cut diameter, and a 0.093 inch cutting width. The 3 inch overall length and 3/16 inch shank diameter make it compatible with standard collet and tool holder setups. With 4 cutting teeth and an uncoated finish, this cutter is suited for applications where sharp edge geometry and dimensional accuracy are the primary requirements. It is typically installed and operated by machinists and tool-and-die professionals in CNC or manual milling machine setups.

This double angle milling cutter is used in precision machining of grooves, dovetails, and chamfers on metal workpieces. The 90-degree included angle suits symmetric V-groove and chamfering work on ferrous and non-ferrous materials. The solid carbide construction supports use in both light finishing cuts and moderate material removal on hardened or abrasive workpieces. A neck diameter of 3/32 inch and neck length of 1.718 inches allow reach into recessed features without interference from the shank body.

Key Features

• Solid carbide construction for rigidity and wear resistance in metalworking applications
• 90-degree included angle for symmetric V-groove, chamfer, and dovetail milling
• 3/16 inch cut diameter with 0.093 inch cutting width for narrow, precise slot profiles
• 4 cutting teeth for balanced chip load and consistent surface finish
• Uncoated finish suitable for applications where coating buildup on the edge is a concern
• 1.718 inch neck length and 3/32 inch neck diameter allow access to recessed workpiece features

Compatibility

Designed as a standard shank-mount double angle milling cutter for use in collet chucks and end mill holders accepting a 3/16 inch shank diameter on CNC or manual milling machines.

Installation Notes

Installation and use of this cutter should be performed by a qualified machinist. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter from the tool holder. Seat the shank fully into the collet or holder and torque the retention hardware to the machine manufacturer specifications. Inspect the cutting edges for chips or wear before each use, as solid carbide edges are brittle and can fracture if the cutter is dropped or impacted.
