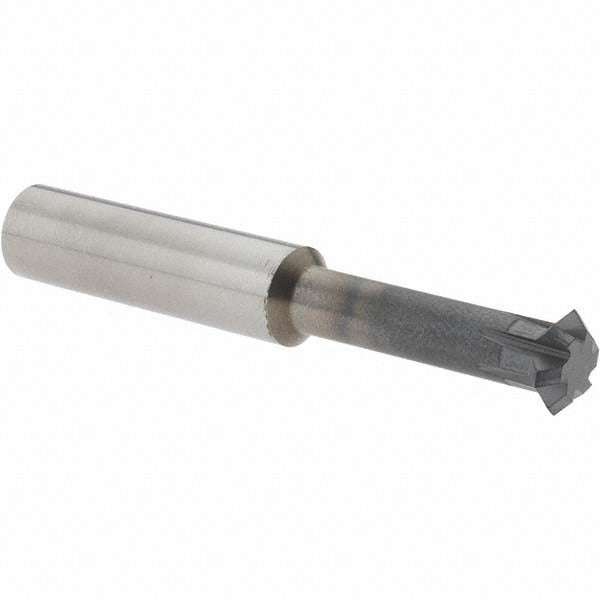

Accupro 37854726 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 37854726 is a double angle milling cutter designed for precision dovetail slotting, chamfering, and angular milling operations in metal cutting applications. Built from solid carbide and finished with an AlTiN (aluminum titanium nitride) coating, it delivers high heat resistance and extended tool life in demanding machining environments. The cutter features a 90-degree included angle, a 3/8-inch cut diameter, a 1/8-inch cutting width, and six flutes for clean, efficient material removal. It weighs 0.136 pounds and is used by machinists and toolroom operators working on CNC mills and manual milling machines.

This cutter is suited for angular groove and dovetail slot work in ferrous and non-ferrous materials where dimensional accuracy and surface finish are critical. The 3/8-inch shank diameter provides a direct collet or end mill holder connection on standard milling machine spindles. The 1/4-inch neck diameter and 1-1/8-inch neck length allow reach into recessed features without interference. It is a solid choice for production shops, tool rooms, and job shops requiring consistent angular milling performance in a compact, shank-mount format.

Key Features

• Solid carbide construction for rigidity and wear resistance in high-speed milling
• AlTiN coating improves heat resistance and extends tool life in dry and semi-dry cutting
• 90-degree included angle for standard dovetail and chamfer geometry
• Six teeth provide smooth cutting action and improved surface finish
• 1/4-inch neck diameter with 1-1/8-inch neck length for reach into recessed workpiece features
• 2.5-inch overall length in a compact, shank-mount form factor

Compatibility

Designed as a shank-mount double angle milling cutter compatible with standard 3/8-inch collets and end mill holders on CNC and manual milling machines.

Installation Notes

Installation is performed by a machinist or toolroom technician. Secure the shank in a clean, properly sized collet or end mill holder and torque to machine manufacturer specifications before use. Ensure the spindle is fully stopped and the machine is powered down before tool changes. Inspect the cutting edges and coating condition before each use; do not run a chipped or damaged carbide cutter.
