Accupro 37752888 Double Angle Milling Cutter 90 Deg Carbide

Product Description

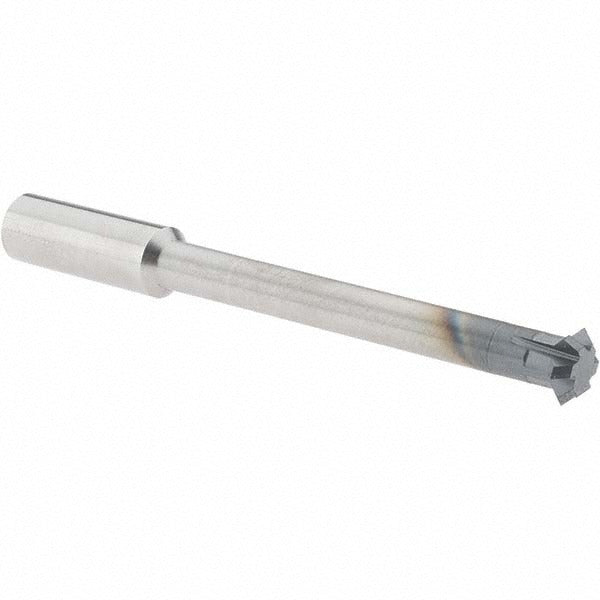

The ACCUPRO 37752888 is a double angle milling cutter designed for precision milling of V-grooves, chamfers, and dovetail features on CNC machining centers and manual mills. Built from solid carbide with an AlTiN coating, this cutter delivers strong wear resistance and thermal stability in ferrous and non-ferrous materials. The included angle measures 90 degrees, the cutting diameter is 3/8 inches, and the cutting width is 1/8 inches. With 6 teeth and a 3/8-inch shank, it provides smooth chip evacuation and consistent finish quality at elevated cutting speeds. Machinists and tool-and-die professionals select this cutter for fine detail work where geometry accuracy is critical.

This cutter is suited for general-purpose angle milling in job shops, production machining, and tool room applications. It is appropriate for use in both vertical and horizontal milling setups where a 3/8-inch shank is accepted. Common applications include deburring chamfer edges, producing symmetrical V-grooves, and preparing mating surfaces. The AlTiN coating makes it particularly effective in dry or minimal-lubrication cutting environments and extends tool life in abrasive materials.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding cuts
• AlTiN coating provides heat and oxidation resistance at high cutting speeds
• 90-degree included angle for precise V-groove and chamfer geometry
• 6-tooth configuration promotes smooth surface finish and efficient chip removal
• 3/8-inch shank diameter fits standard collet and end mill holders
• Neck diameter of 1/4 inch with a neck length of approximately 2.437 inches allows reach into restricted features

Compatibility

Designed as a direct-mount shank-style cutter compatible with standard 3/8-inch collets, end mill holders, and tool chucks on CNC machining centers and manual knee mills.

Installation Notes

Installation is performed by a machinist or toolroom technician using a calibrated torque wrench and appropriate collet or end mill holder sized to 3/8 inches. Ensure the spindle is fully stopped and locked before mounting or removing the cutter. Inspect the shank and holder bore for chips or burrs prior to seating the tool. Follow machine-tool manufacturer guidelines for runout tolerance and tool projection length to maintain geometric accuracy.
