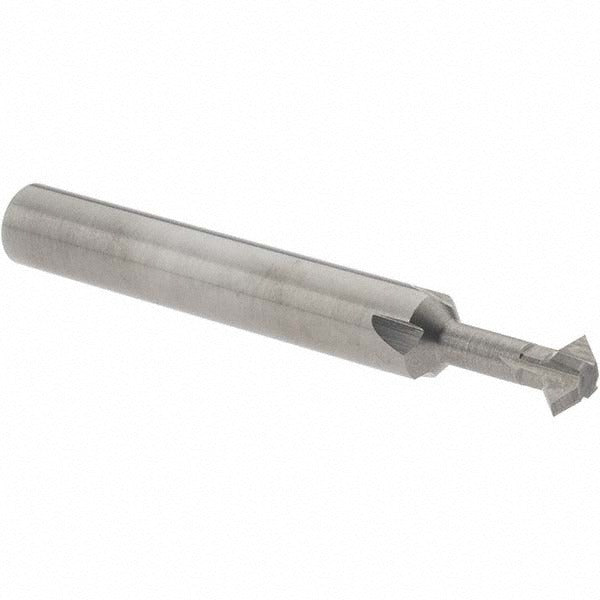

Accupro 35864628 Double Angle Milling Cutter 90 Deg Carbide

Product Description

The ACCUPRO 35864628 is a double angle milling cutter designed for precision dovetail slot, chamfer, and angular groove milling operations. Built from solid carbide, it delivers the rigidity and wear resistance required for consistent dimensional accuracy in production and toolroom environments. The cutter features a 90-degree included angle with a 0.118-inch cut width and mounts via a standard 1/4-inch shank. With 4 teeth and an uncoated finish, it is suited for machinists and toolmakers working with ferrous and non-ferrous materials where a sharp, uncoated edge is preferred for chip clearance and surface finish.

This cutter is used in CNC machining centers and manual milling machines for cutting dovetail grooves, angular chamfers, and symmetric V-slots at a 90-degree included angle. The 0.430-inch neck length provides clearance for shallow to moderate depth-of-cut applications. The 2-inch overall length keeps the tool compact and reduces deflection during operation. Typical users include machinists, tool and die makers, and precision metal fabricators working in job shops or production facilities.

Key Features

• Solid carbide construction for high rigidity and extended tool life
• 90-degree included angle for dovetail slots, chamfers, and V-groove milling
• 0.118-inch cut width for precise, narrow angular profiles
• 4-tooth geometry balances material removal rate with surface finish
• Uncoated finish suitable for applications where coating buildup is a concern
• 1/4-inch shank diameter for compatibility with standard collet systems

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide double angle milling cutter compatible with standard 1/4-inch collet and milling chuck systems on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the 1/4-inch shank firmly in a matched collet or end mill holder to the manufacturer-recommended runout specification for the machine. Inspect the cutting edges for chips or wear before each use, as solid carbide tooling is brittle and should not be used if edge damage is present.
