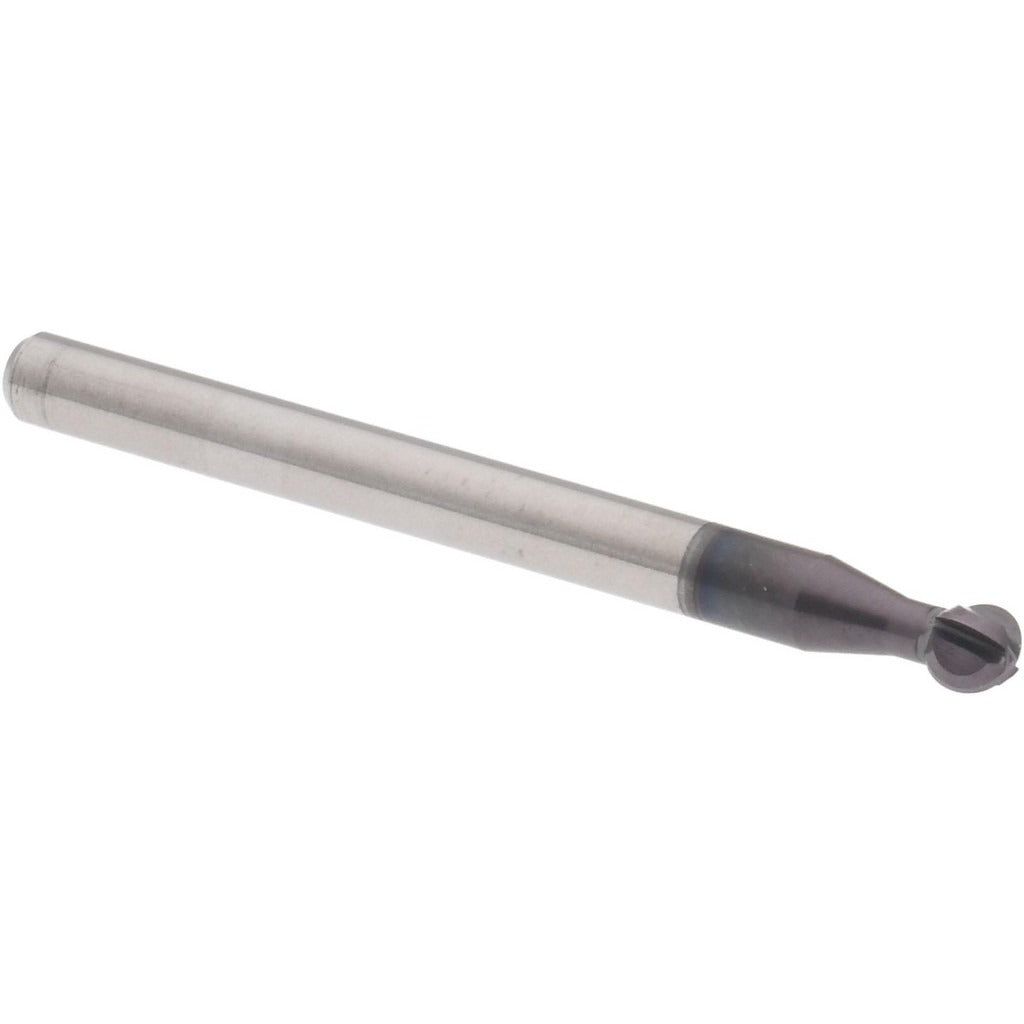

Accupro 35292739 Ball End Mill 1/8 in 4 Flute Solid Carbide

Product Description

The ACCUPRO 35292739 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. With a 1/8 inch (0.1250 inch decimal) mill diameter and a 4-flute configuration, this single-end tool delivers smooth cutting action and efficient chip evacuation in demanding materials. An AlTiCrN coating provides heat resistance and wear protection, extending tool life under high-speed cutting conditions. The overall length is 1.5 inches with a length of cut of 0.1070 inches and a neck length of 0.0620 inches. This end mill is intended for use by machinists and CNC operators working in job shops, tool rooms, and production environments.

This ball end mill is suited for profiling, contouring, and finishing operations on ferrous and non-ferrous materials. The variable index geometry helps reduce vibration and chatter during cuts, improving surface finish quality. The 1/8 inch shank diameter fits standard collets and toolholders commonly found in CNC machining centers and manual milling machines. It is a practical choice for small-diameter work requiring tight tolerances and consistent results.

Key Features

• Solid carbide construction for rigidity and long tool life
• AlTiCrN coating for heat resistance and improved wear performance
• 4-flute design promotes efficient chip removal and surface finish quality
• Variable index geometry reduces vibration and chatter
• Single-end configuration with 1/8 inch shank for broad collet compatibility
• Compact geometry with 0.1070 inch length of cut suits tight-clearance applications

Compatibility

Designed as a replacement-style solid carbide ball end mill compatible with standard 1/8 inch collets and toolholders used in CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully and evenly in the collet to the recommended grip depth before tightening to prevent runout. Verify tool projection and clearance against the workpiece setup before initiating any cutting cycle.
