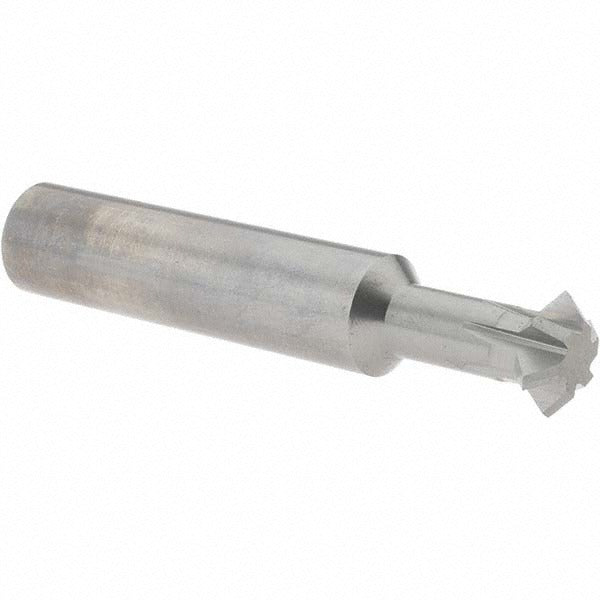

Accupro 32549941 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 32549941 is a double angle milling cutter designed for precision angular milling operations in metalworking and machining applications. Built from solid carbide, this cutter delivers the rigidity and wear resistance required for consistent performance on ferrous and non-ferrous materials. It features a 90-degree included angle, a 5/8 inch cutting diameter, and a 1/4 inch cutting width. The 5/8 inch shank provides a secure connection to standard collets and toolholders. With 6 teeth and an overall length of 3.5 inches, this uncoated cutter suits machinists and toolroom professionals working with manual or CNC milling machines where tight angular geometry is required.

This cutter is suited for cutting V-grooves, dovetails, chamfers, and angular slots in a shop or production machining environment. The 90-degree included angle makes it appropriate for symmetric angular profiles in steel, aluminum, brass, and similar materials. The 3/8 inch neck diameter and 1 inch neck length provide clearance for moderate-depth cuts. It is typically installed and used by machinists and tool-and-die professionals operating vertical or horizontal milling machines.

Key Features

• Solid carbide construction for superior hardness and wear resistance compared to high-speed steel
• 90-degree included angle for precise symmetric V-groove and chamfer geometry
• 6-tooth configuration balances chip evacuation and surface finish quality
• 5/8 inch shank diameter for compatibility with standard collets and toolholders
• 3/8 inch neck diameter with 1 inch neck length provides workpiece clearance
• Uncoated finish suitable for use with cutting fluids on a wide range of base materials

Compatibility

Designed as a shank-style double angle milling cutter for use in standard collet chucks and milling toolholders accepting a 5/8 inch shank diameter on manual or CNC milling machines.

Installation Notes

This cutter is installed by machinists into a compatible collet or toolholder on a milling machine. Ensure the machine spindle is fully powered down and locked before mounting or removing the cutter. Verify collet size matches the 5/8 inch shank before tightening. Use appropriate cutting fluid for the workpiece material to extend tool life and maintain surface finish quality.
