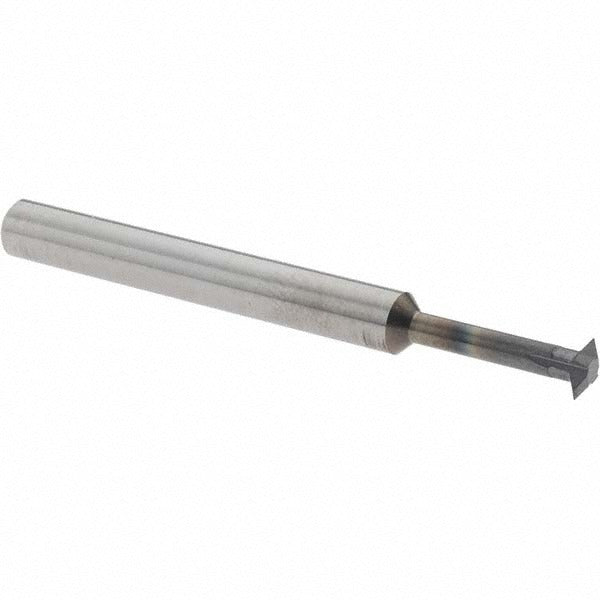

Accupro 31726870 Double Angle Milling Cutter 60 Deg 3/16 in

Product Description

The ACCUPRO 31726870 is a solid carbide double angle milling cutter designed for precision slotting, chamfering, and dovetail operations on CNC machining centers and manual mills. It features a 60-degree included angle, a 3/16-inch cut diameter, and a 0.055-inch cutting width. The AlTiN coating provides elevated heat resistance and extended tool life in ferrous and hardened materials. With four cutting teeth and a 3/16-inch shank diameter, this cutter delivers consistent chip evacuation and surface finish quality in demanding production environments. It is well suited for toolroom and production floor applications where tight tolerances on angle features are required.

This cutter is intended for use in light to medium-duty milling operations on machining centers or Bridgeport-style mills. Typical applications include cutting angular slots, V-grooves, and chamfer forms in steel, stainless steel, aluminum, and similar engineering materials. The 3/32-inch neck diameter and 0.555-inch neck length allow access to moderately recessed features. The 2-inch overall length suits standard toolholder setups without requiring extended reach adapters. Machinists in production shops, toolrooms, and job shops will find this cutter appropriate for repeatable angular profile work.

Key Features

• 60-degree included angle for precise V-groove, chamfer, and dovetail profiling
• Solid carbide construction for rigidity and wear resistance in ferrous materials
• AlTiN coating increases surface hardness and thermal resistance for longer tool life
• Four-flute design promotes efficient chip evacuation and consistent finish quality
• 3/32-inch neck diameter enables access to recessed or confined workpiece features
• 2-inch overall length compatible with standard collet and endmill toolholder systems

Compatibility

Designed for use with standard 3/16-inch collets and compatible endmill toolholders on CNC machining centers and manual milling machines. No specific model compatibility data was provided in the product information.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholder torque and runout specifications. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing cutters. Seat the shank fully in the collet or toolholder to the recommended engagement depth before tightening. Inspect the cutting edges for chips or coating damage before each use, as solid carbide tools are brittle and sensitive to improper handling or interrupted cuts.
