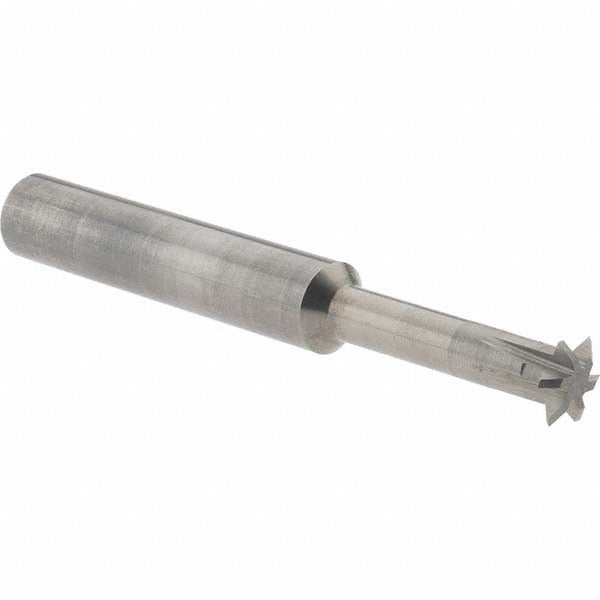

Accupro 31704356 Double Angle Milling Cutter 60 Degree

Product Description

The ACCUPRO 31704356 is a double angle milling cutter designed for precision angular groove and chamfer milling in metalworking applications. Manufactured from solid carbide, it delivers the rigidity and wear resistance required for consistent performance in production and toolroom environments. The cutter features a 60-degree included angle, a 5/16-inch cut diameter, and a 0.072-inch cutting width, making it well suited for tight-tolerance work. With 6 teeth and an uncoated finish, it is appropriate for use in a range of ferrous and non-ferrous materials where coating buildup is not desired. Licensed machinists and CNC setup technicians are the primary installers.

This cutter is intended for use on milling machines, machining centers, and CNC mills where angular profiling, dovetail prep, or chamfering operations are required. The 5/16-inch shank diameter fits standard collet chucks and tool holders of matching bore. The 3/16-inch neck diameter and 0.947-inch neck length provide clearance in confined cutting zones. The 2.5-inch overall length suits typical spindle-to-work setups in light to medium-duty milling fixtures. It is commonly used in toolroom fabrication, mold work, and precision part manufacturing.

Key Features

• 60-degree included angle for precise angular groove and chamfer geometry
• Solid carbide construction for superior rigidity and wear resistance versus high-speed steel
• 0.072-inch cutting width enables narrow, controlled angular cuts
• 6-tooth configuration balances chip evacuation with surface finish quality
• 3/16-inch neck diameter provides clearance in tight or stepped workpiece features
• Uncoated finish suitable for applications where coating is not required or preferred

Compatibility

Designed for use with standard 5/16-inch bore collet chucks and milling tool holders on vertical and horizontal milling machines or CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician. Ensure the spindle is fully powered down and locked out before inserting or removing the cutter from the tool holder. Seat the shank fully into the collet or holder to the recommended engagement depth before tightening. Verify runout with a dial indicator after installation to confirm concentricity before beginning the cut.
