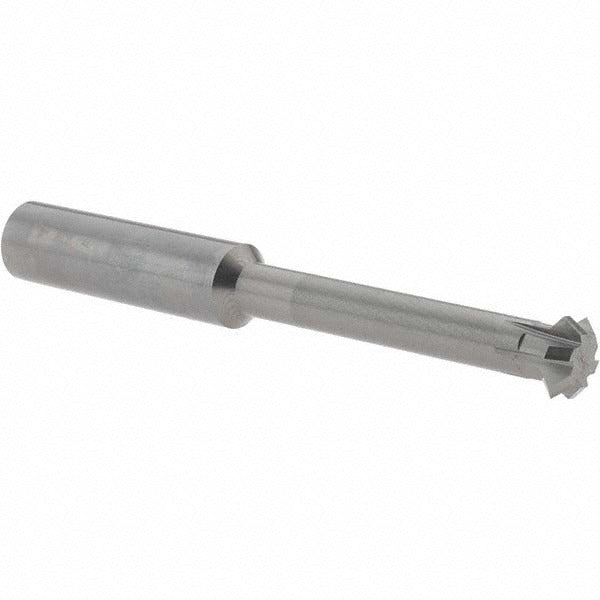

Accupro 31650674 Double Angle Milling Cutter 90 Deg Solid Carbide

Product Description

The ACCUPRO 31650674 is a double angle milling cutter designed for precision angular milling operations on metalworking machines. Built from solid carbide, it delivers the rigidity and wear resistance required for consistent, repeatable cuts. The cutter features a 90-degree included angle, a 1/2-inch cutting diameter, and a 0.187-inch cutting width, making it suited for producing V-grooves, chamfers, and angular slots. With 6 teeth and an uncoated finish, it is ready for use in applications where surface finish and dimensional accuracy are priorities. Machinists and tool-and-die professionals install this cutter using standard milling setups.

This cutter is used in horizontal and vertical milling operations on mills and machining centers in job shop, production, and tool-and-die environments. The 1/2-inch shank diameter allows it to seat in standard collets and tool holders. The 5/16-inch neck diameter and 2.187-inch neck length provide clearance for reach-in cuts. Its 4-inch overall length accommodates setups where modest reach is needed without sacrificing rigidity. It is appropriate for light-to-moderate material removal on steel, aluminum, and similar workpiece materials.

Key Features

• 90-degree included angle for V-groove, chamfer, and angular slot milling
• Solid carbide construction for high rigidity and extended tool life
• 6-tooth configuration balances chip load and surface finish
• Uncoated finish for out-of-the-box use without coating-specific coolant requirements
• 5/16-inch neck diameter provides clearance for reach-in milling operations
• 1/2-inch shank compatible with standard collets and side-lock holders

Compatibility

Designed for use in standard milling machines and machining centers accepting a 1/2-inch shank double angle cutter.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the spindle before inserting or removing the cutter from the collet or tool holder. Ensure the shank is fully seated and the holder is torqued to the machine manufacturer's specification before operation. Inspect the cutting edges for chips or damage before each use.
