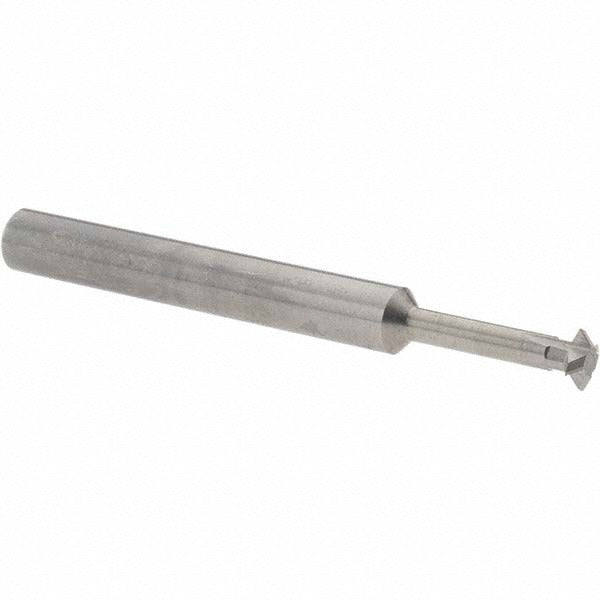

Accupro 31643422 Double Angle Milling Cutter 60 Degree

Product Description

The ACCUPRO 31643422 is a double angle milling cutter ground from solid carbide for use in precision milling and slotting operations on CNC machining centers and manual mills. It features a 60-degree included angle, a 1/4-inch cut diameter, and a 0.072-inch cutting width, making it well suited for cutting V-grooves, chamfers, dovetail relief cuts, and similar angular profiles in metal workpieces. The 1/4-inch shank connects directly to standard collet toolholders. With 4 teeth and an uncoated carbide substrate, this cutter delivers clean angular geometry on ferrous and non-ferrous materials where tight dimensional control is required.

This cutter is intended for use in toolrooms, job shops, and production machining environments. Typical applications include V-groove milling, deburring angular edges, cutting dovetail slots, and profile work requiring a defined included angle. The compact 1/8-inch neck diameter and 2-1/2-inch overall length allow reach into confined areas while maintaining rigidity. It is installed and operated by machinists and CNC programmers working with light-to-medium material removal at controlled feed and speed parameters appropriate for solid carbide tooling.

Key Features

• 60-degree included angle for V-groove, chamfer, and dovetail milling applications
• Solid carbide construction provides rigidity and wear resistance
• 0.072-inch cutting width for precise, narrow angular profiles
• 4-tooth geometry balances chip evacuation with surface finish quality
• 1/8-inch neck diameter allows access to restricted workpiece features
• Uncoated finish suitable for use with cutting fluids on a wide range of materials

Compatibility

Designed for use in standard 1/4-inch collet toolholders and compatible with CNC machining centers, manual knee mills, and similar equipment accepting shank-type milling cutters.

Installation Notes

This cutter is installed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing tooling. Seat the shank fully and evenly in a clean, undamaged collet to prevent runout. Verify spindle speed and feed rate are set within the ranges appropriate for solid carbide end mills before engaging the cut.
