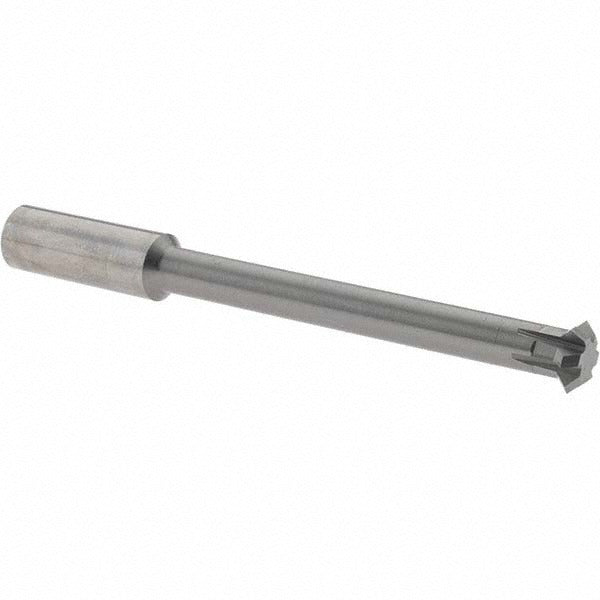

Accupro 31595523 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 31595523 is a double angle milling cutter designed for precision angular milling operations in metalworking environments. Built from solid carbide, it delivers the rigidity and wear resistance required for consistent performance on ferrous and non-ferrous materials. The cutter features a 90-degree included angle, a 3/8 inch cut diameter, and a 1/8 inch cutting width, making it well-suited for cutting V-grooves, chamfers, and angular slots. With 6 teeth and an uncoated finish, it is optimized for sharp, clean cuts. The 3/8 inch shank diameter provides direct machine tool connection, and the overall length of 3.5 inches suits standard milling setups.

This cutter is intended for use in horizontal and vertical milling machine applications where precise angular profiles are required. It is a common tool in job shops, toolrooms, and production machining environments. The 1/4 inch neck diameter and 2.437 inch neck length allow access in applications where clearance around the workpiece is limited. Machinists and tool-and-die professionals use this type of cutter for dovetail prep work, chamfering, and angular groove milling on steel, aluminum, and similar materials.

Key Features

• Solid carbide construction for high rigidity and extended tool life
• 90-degree included angle for V-groove and chamfer applications
• 3/8 inch cut diameter with 1/8 inch cutting width for narrow angular profiles
• 6-tooth design balances chip clearance with surface finish quality
• Uncoated finish suitable for general-purpose milling applications
• 1/4 inch neck diameter with 2.437 inch neck length for improved reach and clearance

Compatibility

Designed as a standard shank-mount milling cutter compatible with milling machines and machining centers accepting a 3/8 inch shank diameter toolholder or collet.

Installation Notes

Installation is performed by qualified machinists using a compatible collet or endmill holder rated for the 3/8 inch shank diameter. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter. Verify runout with a dial indicator after seating the tool to confirm concentricity before cutting. Follow machine tool manufacturer guidelines for spindle speed and feed rate selection based on workpiece material.
