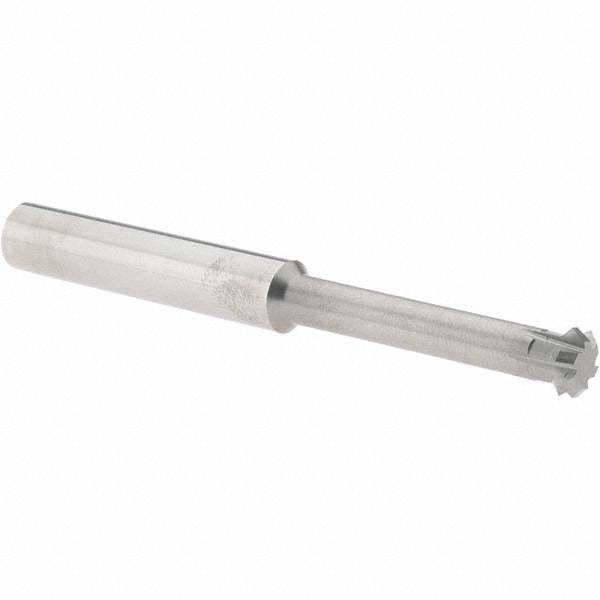

Accupro 31595515 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 31595515 is a solid carbide double angle milling cutter designed for precise angular groove milling, chamfering, and dovetail preparation on metalworking mills and machining centers. Built with a 90-degree included angle and six flutes, it delivers clean, accurate cuts in ferrous and non-ferrous materials. The uncoated solid carbide construction provides rigidity and wear resistance suited for short-run precision work. The 3/8-inch shank provides secure clamping in standard collet chucks and end mill holders. This cutter is installed and operated by machinists, toolmakers, and CNC operators in job shops and production environments.

This cutter fits applications requiring symmetric angular profiles at 90 degrees, including V-groove milling, countersinking flat-bottomed features, and angular relief cuts. With a 1/8-inch cutting width and a 3/8-inch cutting diameter, it is suited for light-to-medium material removal on manual knee mills and CNC vertical machining centers. The 1/4-inch neck diameter and 1-5/8-inch neck length provide clearance for reaching into recessed features without interference from the shank body.

Key Features

• 90-degree included angle for symmetric V-groove and chamfer operations
• Solid carbide construction for rigidity and dimensional stability
• Six flutes for smooth chip evacuation and consistent surface finish
• Uncoated finish suitable for use with cutting fluids on a range of workpiece materials
• 1/4-inch neck diameter with 1-5/8-inch neck length for reach into recessed features
• 3/8-inch shank compatible with standard collet chucks and end mill holders

Compatibility

Designed as an OEM-style double angle milling cutter for use in standard 3/8-inch collet chucks and end mill holders on manual and CNC milling machines.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and lock out the spindle before mounting or removing the cutter. Seat the shank fully into the collet or holder and torque the retention hardware according to the toolholder manufacturer specifications. Verify runout with a dial indicator before commencing the cut, and confirm that spindle speed and feed rate are appropriate for the workpiece material and cutting diameter.
