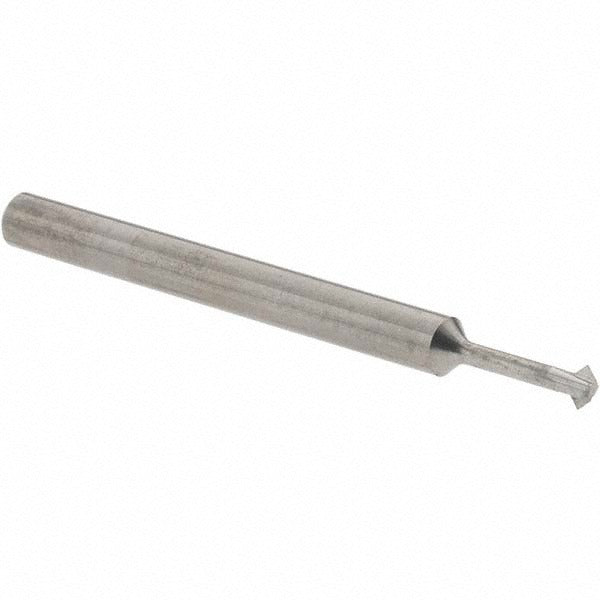

Accupro 31592884 Double Angle Milling Cutter 90 Deg

Product Description

The ACCUPRO 31592884 is a double angle milling cutter designed for precision forming and deburring operations in metalworking applications. Built from solid carbide, this cutter produces clean, accurate angular profiles at a 90-degree included angle. It features a 3/32-inch cutting diameter and a 3/64-inch cutting width, making it well suited for fine detail work in tight geometries. The 1/8-inch shank diameter keeps the setup compact, and the overall length of 1-1/2 inches allows use in standard milling chucks and collet holders. With 2 flutes and an uncoated finish, it is a straightforward tool for shops working in softer steels, aluminum, brass, or similar non-ferrous materials. Machinists and tool-and-die professionals are the primary installers of this cutter type.

This cutter fits into light-duty milling operations where a small-diameter double angle profile is required. Typical applications include chamfering, dovetail preparation, V-groove cutting, and angular edge forming on small workpieces or components. The compact 3/32-inch cut diameter makes it appropriate for micro-detail work on CNC machining centers, manual knee mills, or similar setups where toolholder clearance is limited. Its solid carbide construction delivers consistent dimensional accuracy across production runs in shop environments.

Key Features

• 90-degree included angle for precise angular profile milling and chamfering
• Solid carbide construction provides rigidity and dimensional stability during cutting
• 3/32-inch cutting diameter suited for fine detail and small-part applications
• 3/64-inch cutting width (0.0470 inches) for narrow groove and angular edge work
• 2-flute design balances chip clearance and edge strength at this diameter
• Uncoated finish compatible with standard cutting fluids and lubricants

Compatibility

Designed as an OEM-style replacement or direct-use double angle milling cutter for standard 1/8-inch shank collet systems on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by a qualified machinist or toolroom professional. Power down and lock out the machine spindle before inserting or removing the cutter from the collet or chuck. Verify collet size matches the 1/8-inch shank diameter before tightening. Inspect the cutting edges under magnification prior to use, as solid carbide is brittle and susceptible to chipping if dropped or improperly handled.
