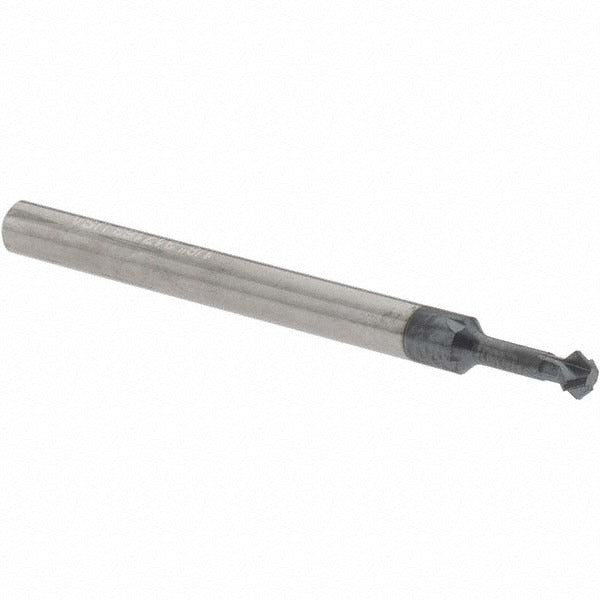

Accupro 31585391 Double Angle Milling Cutter 90 Deg 1/8 in

Product Description

The ACCUPRO 31585391 is a double angle milling cutter designed for precision slotting, chamfering, and angular groove milling on CNC machining centers and manual mills. Built from solid carbide, this cutter delivers the rigidity and heat resistance required for demanding cuts in steel, stainless, cast iron, and non-ferrous alloys. The 90-degree included angle and 0.062-inch cutting width make it well suited for tight, consistent angular profiles. An AlTiN coating extends tool life by reducing friction and resisting thermal breakdown at elevated cutting temperatures. With four teeth and a 1/8-inch shank, this tool is intended for use by machinists and tooling specialists working to close tolerances.

This cutter fits applications requiring small-diameter angular profiling, deburring, or v-slot milling in precision machined components. The 1/8-inch cut diameter and 1/16-inch neck diameter make it appropriate for confined workspaces and fine-detail work in mold and die, aerospace component, and general precision machining environments. The 1-1/2-inch overall length provides adequate reach while maintaining tool stiffness. It is sold individually and is suited for job shops and production environments where consistent, repeatable angular geometry is required.

Key Features

• 90-degree included angle for consistent chamfer and v-slot profiles
• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating reduces friction and extends tool life at high cutting temperatures
• Four-tooth design balances chip evacuation with surface finish quality
• 1/16-inch neck diameter allows access to confined or recessed features
• Shank connection type for direct collet or end mill holder mounting

Compatibility

Designed as a shank-mount double angle milling cutter compatible with standard 1/8-inch collets and end mill holders used on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is locked out before tool changes. Secure the 1/8-inch shank in a properly sized collet or end mill holder torqued to the machine manufacturer's specification. Verify runout with a dial indicator before cutting to protect the small-diameter neck from deflection or breakage.
