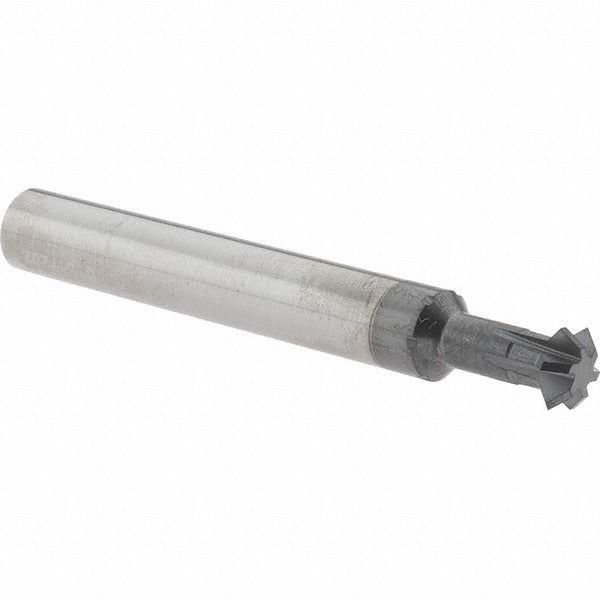

Accupro 31583347 Double Angle Milling Cutter 90 Deg Carbide

Product Description

The ACCUPRO 31583347 is a double angle milling cutter designed for precision angular milling operations in ferrous and non-ferrous materials. Built from solid carbide with an AlTiN coating, this cutter delivers extended tool life at elevated cutting temperatures. It features a 90-degree included angle, a 5/16-inch cutting diameter, and a 1/8-inch cutting width. The 5/16-inch shank provides a direct, rigid connection in standard milling chucks and collets. With 6 teeth and a 2.5-inch overall length, it suits tight-tolerance angular groove and chamfer work performed by machinists and tool-and-die professionals.

This cutter is suited for angular milling, chamfering, and V-groove cutting operations on machining centers and manual mills. The 3/16-inch neck diameter and 1/2-inch neck length allow access to recessed features without tool body interference. It is appropriate for production and job-shop environments where consistent angular geometry is required on steel, stainless, aluminum, and similar materials.

Key Features

• 90-degree included angle for precise chamfer and V-groove milling
• Solid carbide construction for rigidity and wear resistance
• AlTiN coating extends tool life in high-temperature cutting conditions
• 6 teeth for efficient material removal and smooth surface finish
• 3/16-inch neck diameter enables access to recessed features
• 5/16-inch shank for standard collet and chuck compatibility

Compatibility

Designed as a standard shank-mount double angle milling cutter compatible with milling machines and machining centers accepting a 5/16-inch straight shank via collet or end mill holder.

Installation Notes

Installation is performed by qualified machinists. Secure the shank fully within the collet or end mill holder to the holder manufacturer's specified engagement depth before tightening. Ensure the spindle is at a complete stop and machine power is locked out before tool changes. Inspect the cutting edges for chips or wear before each use.
