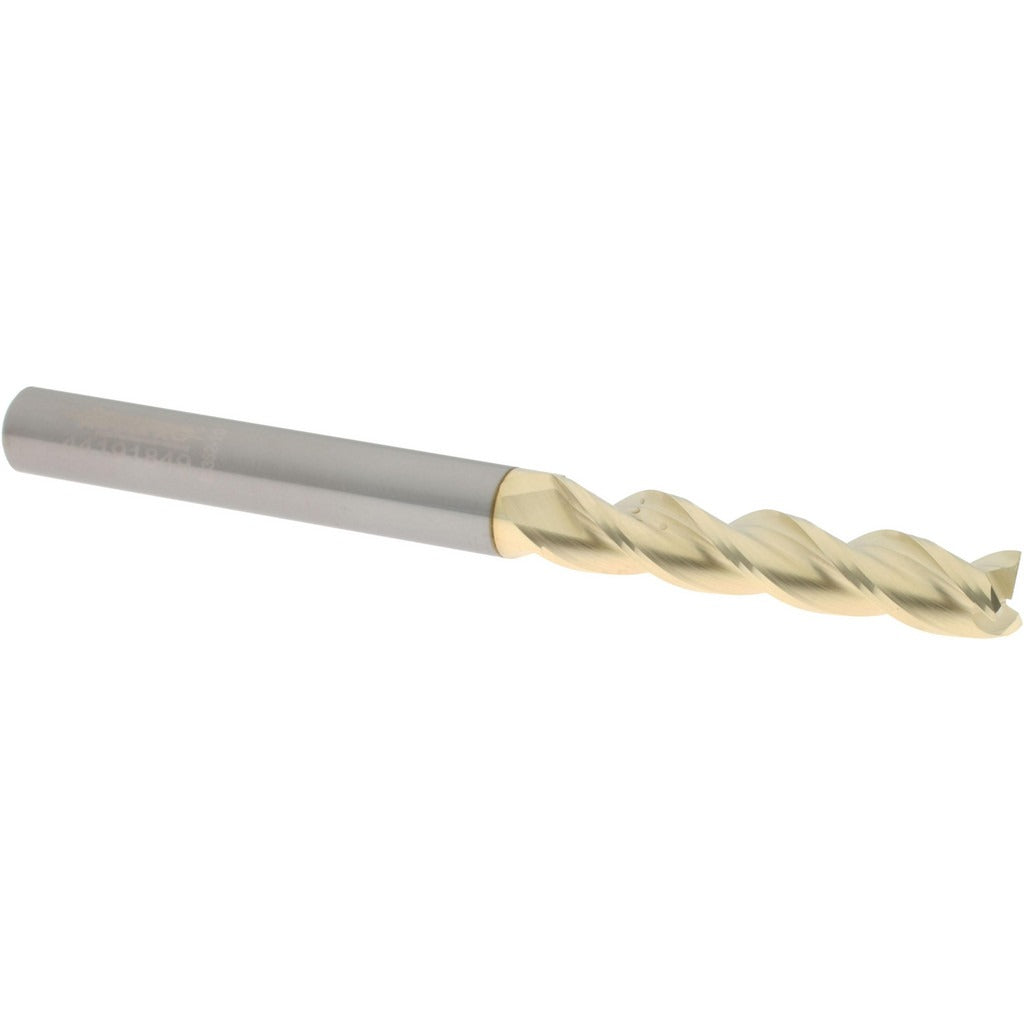

Accupro 315149 Square End Mill 1/4 in 3 Flute Carbide Zrn

Product Description

The ACCUPRO 315149 is a solid carbide square end mill designed for precision metal removal in milling applications. It features a 1/4-inch diameter with a 1-1/4-inch length of cut and a 3-inch overall length, giving it the extended reach needed for deeper pocket and slot work. The three-flute geometry combined with a 37-degree right-hand helix promotes efficient chip evacuation and smooth cutting action. The micrograin carbide substrate and ZrN (zirconium nitride) coating provide hardness and heat resistance suited to ferrous and non-ferrous materials. Installation and setup are handled by machinists and CNC operators working with vertical mills, machining centers, and manual knee mills.

This end mill is suited for slot milling, peripheral milling, and pocket work in applications requiring a long-reach 1/4-inch tool. The 1/4-inch shank diameter fits standard ER collet chucks, end mill holders, and similar toolholding systems. The long-length classification makes it appropriate for deep-cavity work where a standard-length tool cannot reach. Center-cutting capability allows direct plunge entry without a pre-drilled pilot hole. Right-hand cutting and right-hand flute direction are standard for conventional CNC and manual milling setups.

Key Features

• Solid micrograin carbide construction for hardness and wear resistance
• ZrN coating extends tool life and reduces built-up edge on a range of work materials
• 37-degree helix angle promotes aggressive chip flow and reduced cutting forces
• Three right-hand spiral flutes for efficient chip evacuation in slotting and pocketing
• Center-cutting design allows direct plunge milling without a pilot hole
• Long-length classification with 1-1/4 inch LOC for deep-reach applications

Compatibility

Designed as a direct-fit replacement for 1/4-inch shank square end mills in standard ER collet chucks, shrink-fit holders, and end mill holders used on CNC machining centers and manual mills.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the spindle before changing tooling. Verify collet or holder bore size matches the 1/4-inch shank diameter and inspect the taper and collet for wear or contamination before seating the tool. Follow the machine tool manufacturer torque specifications for drawbar and collet nut tightening.
