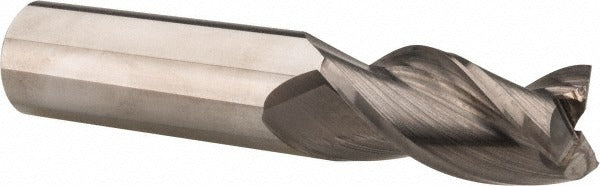

Accupro 315062 Square End Mill 1in 3 Flute Solid Carbide

Product Description

The ACCUPRO 315062 is a solid carbide square end mill designed for precision milling operations in metal fabrication and machining environments. It features a 1-inch diameter cutting head with a 2-inch length of cut and a 3-flute spiral configuration at a 37-degree helix angle. The micrograin carbide construction delivers the hardness and edge retention needed for demanding ferrous and non-ferrous material removal. This is a single-end, right-hand cutting tool with a bright uncoated finish, suited for applications where coating is not required or where re-sharpening is anticipated. Machinists and tool-and-die professionals are the primary users.

This end mill is applicable in CNC machining centers and manual mills for slotting, profiling, and peripheral milling operations. The stub length classification and 5-inch overall length make it appropriate for general-purpose setups where rigidity is prioritized over extended reach. The 1-inch shank diameter matches standard collet and end mill holder sizes commonly found in production and job-shop environments. The centercutting geometry allows for direct plunge entry into workpieces when required.

Key Features

• 1-inch mill diameter with a tight tolerance of +0.000 / -0.005 inches for accurate fitment
• 3-flute spiral design at a 37-degree helix angle for efficient chip evacuation
• Micrograin solid carbide construction for extended tool life and edge stability
• Right-hand cut and right-hand flute orientation for standard CNC and manual mill use
• Centercutting capable — supports direct plunge milling operations
• Bright uncoated finish suitable for re-sharpening or use where coating is not needed

Compatibility

Designed as a direct-fit replacement or standard tooling option for CNC machining centers and manual milling machines accepting a 1-inch shank diameter end mill holder or collet system.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling change procedures. Ensure the machine spindle is fully powered down and at a complete stop before changing tooling. Verify collet or end mill holder bore size matches the 1-inch shank diameter, and confirm shank seating depth meets the holder manufacturer's minimum engagement requirement. Follow machine tool manufacturer guidelines and applicable shop safety protocols when setting tool length offsets prior to operation.
