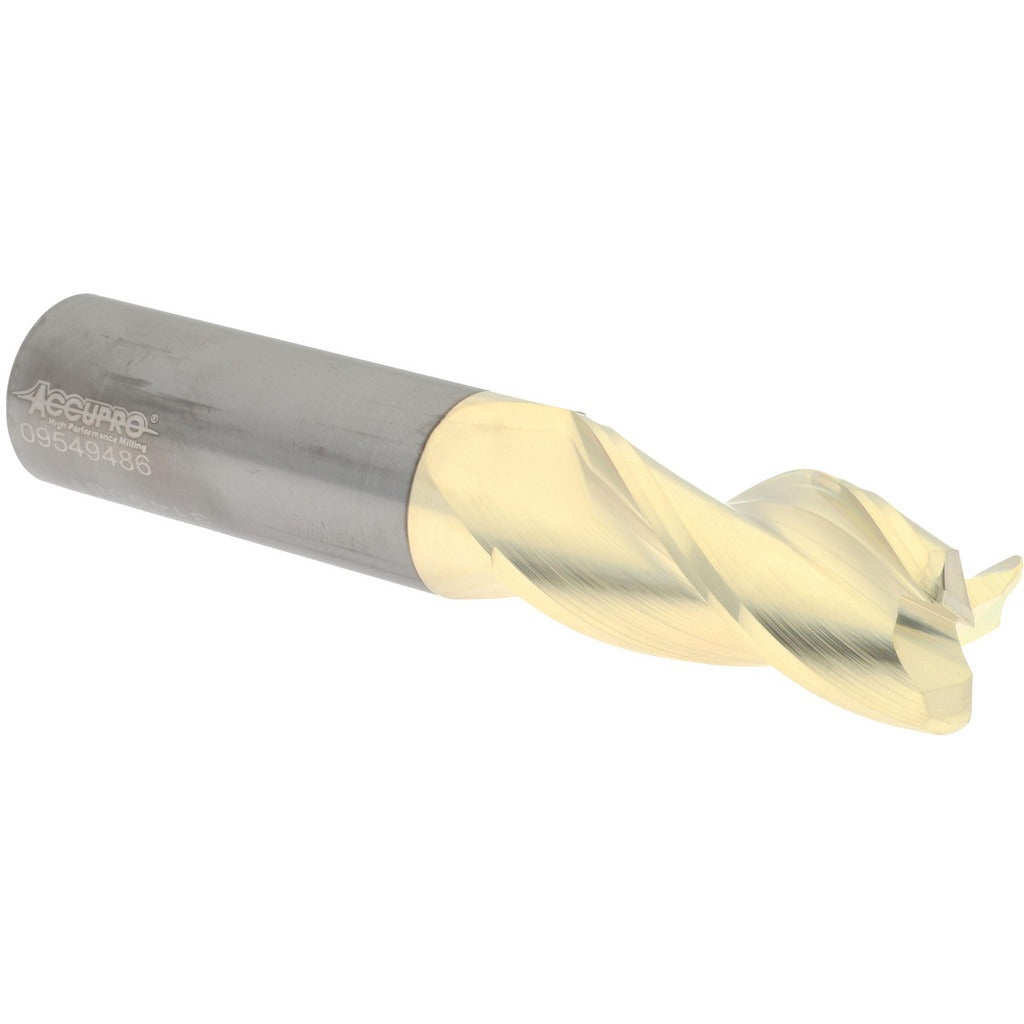

Accupro 314998 Corner Radius End Mill 3/4 in Solid Carbide

Product Description

The ACCUPRO 314998 is a solid carbide corner radius end mill designed for precision milling of metals and hard materials. It features a 3/4-inch diameter, a 1-5/8-inch length of cut, and a 4-inch overall length. The cutting end has a 0.090-inch corner radius that blends floor-to-wall transitions and reduces stress concentrations at part edges. A ZrN (zirconium nitride) coating adds surface hardness and heat resistance, extending tool life in demanding cuts. The 37-degree helix angle and three-flute, right-hand spiral geometry promote chip evacuation and smooth cutting action. Centercutting capability allows plunge entry. This tool is used by machinists and tool-and-die professionals in CNC milling applications.

This end mill is suited for roughing and finishing operations on ferrous and non-ferrous workpiece materials in production and job-shop CNC machining environments. The micrograin solid carbide substrate supports high-speed cutting parameters and holds tight tolerances over extended run times. The single-end, regular-length configuration fits standard ER and side-lock toolholders with a 3/4-inch bore. It is appropriate for vertical and horizontal machining centers where controlled corner blending and floor finish are required.

Key Features

• 0.090-inch corner radius reduces stress risers and blends floor-to-wall transitions
• ZrN coating increases surface hardness and thermal resistance for longer tool life
• Micrograin solid carbide substrate supports tight tolerances at high cutting speeds
• Three-flute, 37-degree right-hand spiral geometry promotes efficient chip evacuation
• Centercutting design allows direct plunge entry without a pilot hole
• Single-end, regular-length profile fits standard 3/4-inch CNC toolholders

Compatibility

Designed as an OEM-style replacement or direct-specification solid carbide corner radius end mill for CNC machining centers accepting a 3/4-inch shank diameter toolholder.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and the tool is de-energized before changing tooling. Seat the shank fully into a clean, undamaged collet or side-lock holder and torque the retention hardware to the toolholder specification. Verify runout with a dial indicator before initiating a cut program.
