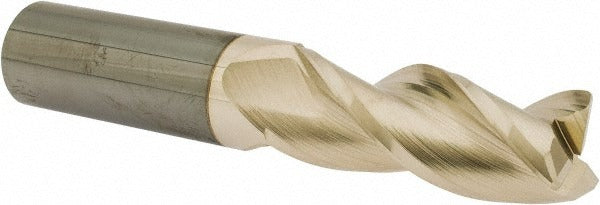

Accupro 314924 Corner Radius End Mill 5/8 in 3 Flute

Product Description

The ACCUPRO 314924 is a single-end, corner radius end mill designed for precision milling operations in ferrous and non-ferrous materials. Built from micrograin solid carbide and coated with ZrN (zirconium nitride), it delivers extended tool life and wear resistance in demanding cutting environments. The 5/8 inch diameter cutter features 3 right-hand spiral flutes with a 37-degree helix angle, producing smooth chip evacuation and reduced cutting forces. The 0.030 inch corner radius protects the cutting edge and produces consistent radiused transitions in finish passes. Centercutting geometry allows for direct plunge entry without a pre-drilled hole.

This end mill is suited for CNC machining centers and manual mills in job shop, production, and toolroom environments. It handles slotting, profiling, and peripheral milling operations where a corner radius is required on the finished part. The 1-5/8 inch length of cut (LOC) and 3-1/2 inch overall length (OAL) position it for standard-depth pocketing and contouring work. The 5/8 inch shank diameter fits standard ER, CAT, and BT toolholding systems. Micrograin carbide substrate makes it appropriate for hardened steels, stainless, cast iron, and high-temp alloys.

Key Features

• Micrograin solid carbide substrate for rigidity and edge retention
• ZrN coating improves surface hardness and reduces built-up edge
• 0.030 inch corner radius for radiused edge transitions and reduced chipping
• 37-degree helix angle promotes efficient chip flow in deep cuts
• Centercutting design enables direct plunge milling
• Right-hand cut, right-hand flute spiral for standard spindle direction

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool for CNC and manual milling machines accepting a 5/8 inch shank diameter toolholder.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before loading or removing the tool. Seat the shank to the full recommended gauge-line depth in the toolholder and torque collet nuts or setscrews per the toolholder manufacturer specifications. Verify runout with a dial indicator before beginning a production cut to avoid premature edge wear.
