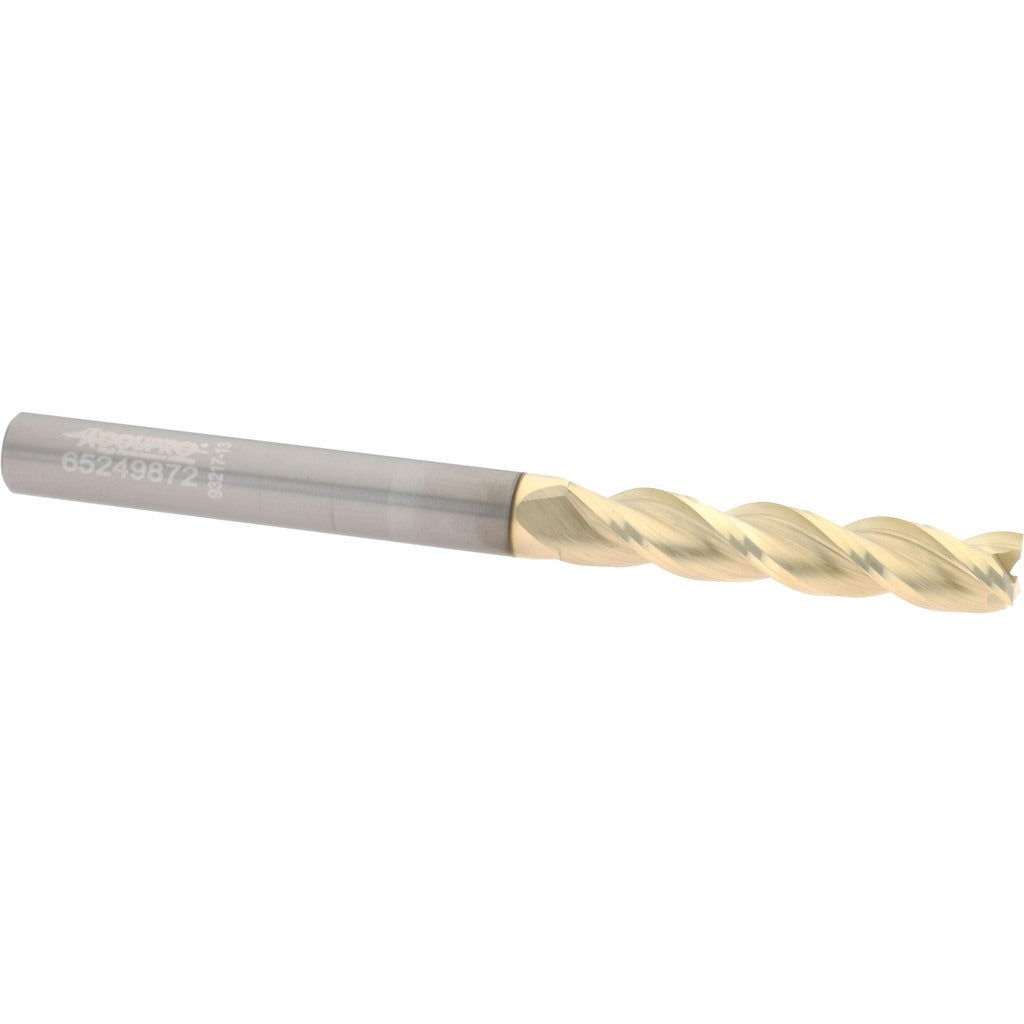

Accupro 314614 Square End Mill 1/4 in 3 Flute Solid Carbide

Product Description

The ACCUPRO 314614 is a solid carbide square end mill designed for precision milling operations in ferrous and non-ferrous materials. It features a 1/4 inch mill diameter, a 1-1/4 inch length of cut, and a 37-degree helix angle that promotes efficient chip evacuation and smooth cutting action. The ZrN (zirconium nitride) coating adds surface hardness and heat resistance, extending tool life in demanding cutting environments. With a micrograin carbide grade, this end mill maintains sharp cutting edges under high-feed and high-speed conditions. It is a single-end, centercutting tool, meaning it can plunge directly into a workpiece as well as perform side and slot milling.

This end mill is suited for machining centers, CNC mills, and manual milling machines in job shop, production, and toolroom environments. The right-hand cutting and right-hand spiral flute direction make it compatible with standard spindle configurations. The 1/4 inch shank diameter fits common collet and end mill holder systems. Typical applications include profiling, slotting, pocketing, and contouring in steel, stainless, cast iron, aluminum, and similar materials where a short, rigid tool setup is appropriate.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention
• ZrN coating provides elevated hardness and thermal resistance
• 37-degree helix angle promotes efficient chip flow and reduced cutting force
• Centercutting geometry allows direct plunge entry into workpiece
• 3-flute design balances chip clearance and cutting edge count for versatile material compatibility
• Right-hand cut and right-hand flute direction for standard spindle use

Compatibility

Designed as a standard single-end square end mill with a 1/4 inch shank, compatible with 1/4 inch collets, end mill holders, and shrink-fit tooling systems used on CNC and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully into the holder to the minimum insertion depth recommended by the holder manufacturer to avoid tool pull-out under load. Inspect the collet or holder for wear before use, as a damaged clamping surface can affect runout and shorten tool life.
