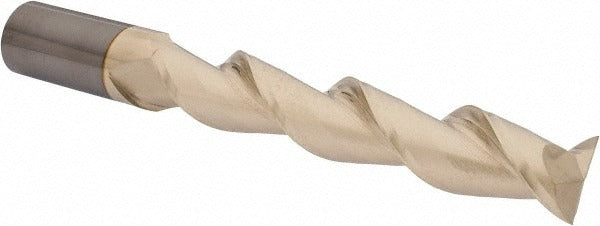

Accupro 313553 Square End Mill 1 in 2 Flute Solid Carbide

Product Description

The ACCUPRO 313553 is a solid carbide square end mill designed for high-performance milling in metal, alloy, and composite workpiece materials. It features a 1 inch cutting diameter, a 5.5 inch length of cut, and an 8 inch overall length, making it well suited for deep-reach slotting, profiling, and peripheral milling operations. The 45-degree helix angle promotes aggressive chip evacuation and smooth cutting action. A ZrN (zirconium nitride) coating increases surface hardness and reduces tool wear, extending tool life in demanding cutting environments. Micrograin carbide substrate provides the toughness and rigidity required for interrupted cuts and long-reach applications.

This end mill is used in precision machining applications across job shops, aerospace, mold-and-die, and general manufacturing environments. It is suited for CNC vertical and horizontal milling centers where extended reach and deep-cavity work are required. The centercutting geometry allows direct plunge entry into the workpiece without a pre-drilled hole. Right-hand cut and right-hand flute configuration is standard for conventional and climb milling on most CNC platforms. The 1 inch shank diameter provides positive tool holding in standard ER, CAT, BT, and HSK tooling systems.

Key Features

• 1 inch cutting diameter with a mill diameter tolerance of +0.000 / -0.002 inches
• 5.5 inch length of cut for deep-reach slotting and profiling
• ZrN coating for improved wear resistance and extended tool life
• 45-degree spiral helix angle for efficient chip evacuation
• Centercutting design allows direct plunge milling without a pilot hole
• Micrograin solid carbide substrate for rigidity in long-reach setups

Compatibility

Designed as an OEM-style solid carbide square end mill compatible with standard 1 inch bore milling tool holders used on CNC machining centers.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in an e-stop or lockout/tagout state before changing tooling. Seat the 1 inch shank fully and evenly in the tool holder and torque the retention mechanism per the tool holder manufacturer specifications. Inspect the collet or end mill holder for runout before beginning a cut, particularly given the extended 8 inch overall length.
