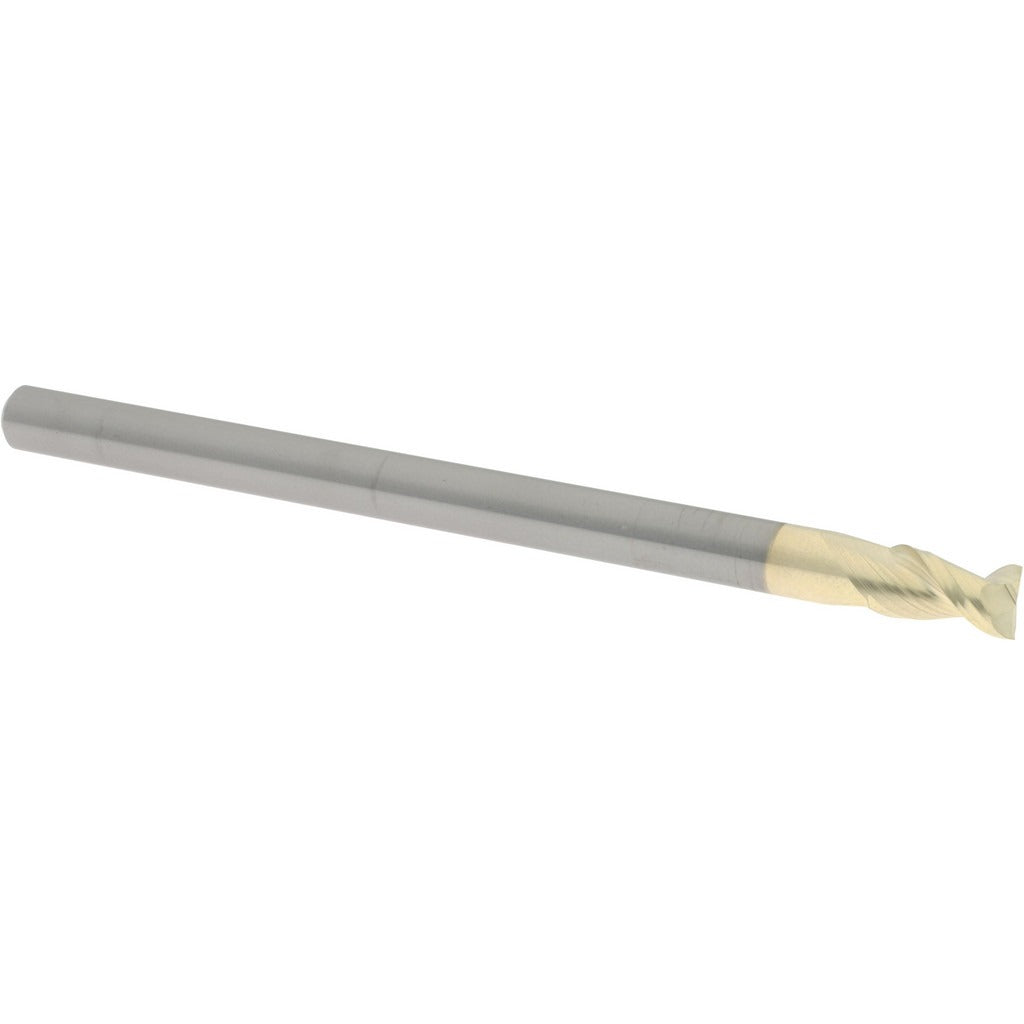

Accupro 312966 Square End Mill 3/16 in 2 Flute Carbide Zrn

Product Description

The ACCUPRO 312966 is a solid carbide square end mill designed for precision milling operations in metal, composite, and hard-material applications. Built from micrograin carbide stock, it delivers consistent edge retention at small diameters. The 3/16 inch cutting diameter pairs with a 5/16 inch length of cut and a 45-degree helix angle that promotes efficient chip evacuation and reduces chatter. A zirconium nitride (ZrN) coating increases surface hardness and lubricity, extending tool life in ferrous and non-ferrous materials. The centercutting geometry allows plunge entry. Right-hand cut and right-hand spiral flute configuration is standard for conventional CNC and manual milling setups.

This end mill fits small-part and close-tolerance milling work on CNC machining centers, knee mills, and benchtop mills. The 3/16 inch shank diameter suits standard ER collet chucks and small-bore toolholders common in precision shops. The 3 inch overall length keeps the tool rigid at this diameter, limiting deflection in slotting and profiling passes. Typical applications include slot milling, peripheral profiling, and light pocketing in steel, aluminum, brass, and similar materials. The spiral flute geometry and ZrN finish make it particularly effective in stainless steel and hardened alloys where heat buildup is a concern.

Key Features

• Micrograin solid carbide construction for consistent edge retention and rigidity
• ZrN coating improves surface hardness, lubricity, and tool life in ferrous and non-ferrous cuts
• 45-degree helix angle promotes efficient chip evacuation and reduces vibration
• Centercutting geometry enables direct plunge milling without a pre-drilled entry hole
• Right-hand cut, right-hand spiral flute — compatible with standard CNC spindle rotation
• Close-tolerance shank: plus 0.0001 inch / minus 0.0004 inch for secure collet grip

Compatibility

Designed as a standard 3/16 inch shank end mill for use in ER collet chucks, end mill holders, and small-bore toolholding systems on CNC machining centers and manual milling machines.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the spindle before inserting or removing tooling. Seat the shank fully into the collet or holder to the minimum recommended engagement depth before tightening. Inspect the cutting edges and coating for chips or wear before each use, as micrograin carbide tools can fracture if run with damaged geometry.
