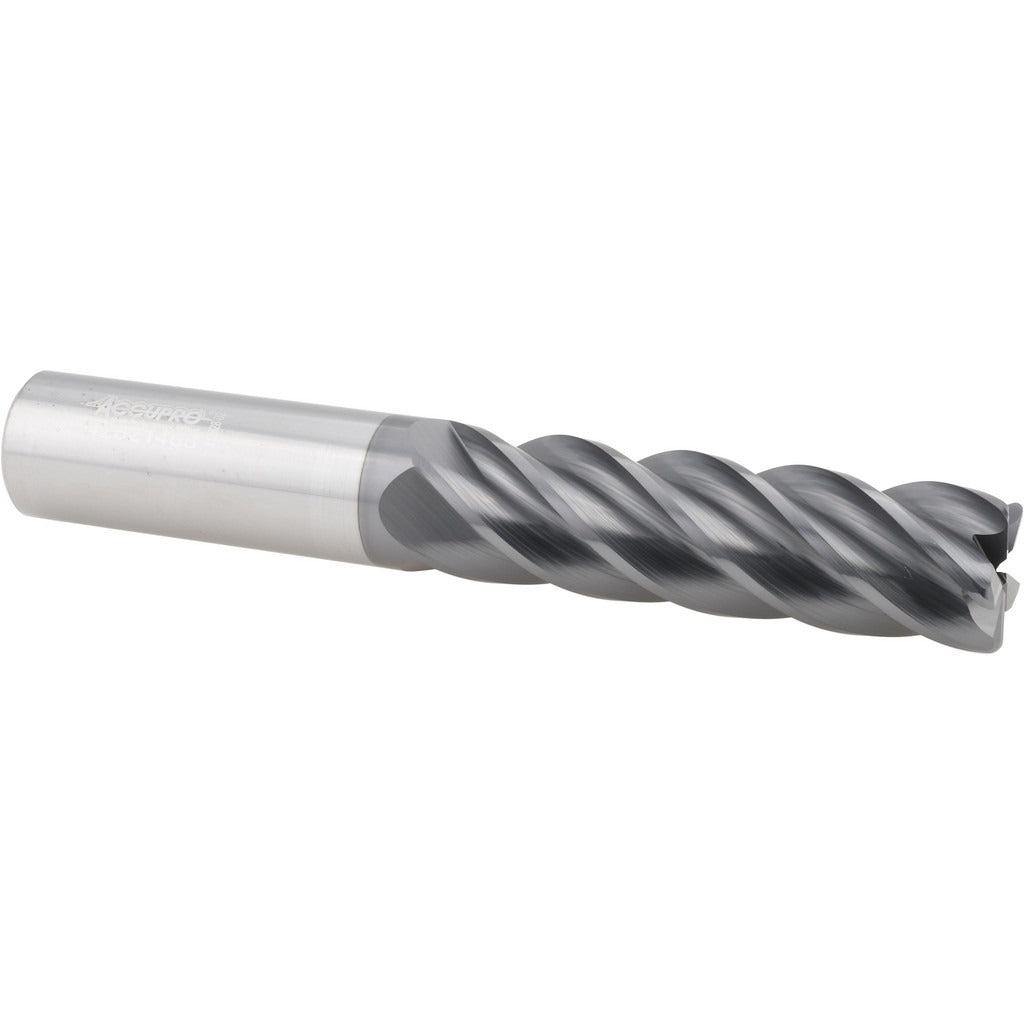

Accupro 311824 Corner Radius End Mill 3/4 in 5 Flute Carbide

Product Description

The ACCUPRO 311824 is a solid carbide corner radius end mill designed for demanding milling operations in ferrous and hardened materials. Built to the HS series specification, it features a 3/4 inch diameter, a 2-3/4 inch length of cut, and a 5-inch overall length. The AlCrTiN coating provides high heat and oxidation resistance, making this tool well-suited for high-speed and dry cutting conditions. With five flutes, a 38-degree helix angle, variable index, and a 0.060 inch corner radius, the 311824 delivers efficient chip evacuation and reduced radial cutting forces. It is single-end and centercutting, allowing plunge entry. Machinists and CNC operators in job shops and production environments are the primary users.

This end mill is appropriate for milling slots, pockets, profiles, and contours where a defined corner radius is required to reduce stress concentrations in finished parts. The right-hand flute direction and right-hand cutting orientation are standard for conventional CNC vertical and horizontal machining centers. The 3/4 inch shank diameter matches directly to standard ER and side-lock tool holders. The micrograin carbide substrate supports high feeds and speeds in steel, stainless, cast iron, and similar materials.

Key Features

• Solid micrograin carbide substrate for rigidity and wear resistance
• AlCrTiN coating supports high-temperature and dry cutting applications
• 5-flute design increases feed rate capability compared to 4-flute equivalents
• Variable index reduces harmonic chatter during aggressive cuts
• 0.060 inch corner radius extends tool life and reduces part stress risers
• Centercutting geometry allows direct plunge milling

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide corner radius end mill for CNC machining centers accepting a 3/4 inch shank diameter toolholder.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle and toolholder are clean and free of chips before seating the shank. Torque the toolholder to the machine manufacturer specification using the appropriate wrench — do not use impact tools. Confirm runout with a dial indicator before cutting, as excessive runout accelerates wear and degrades surface finish.
